PPC-HU12A

Model : PPC-HU12A

Description :
◆ Integrated Intel 5th Mobile Broadwell-U single chipset CPU；
◆12inch TFT LED display and 4 wires resistive Touch panel;
◆ Front panel protection Rating: IP65;
◆ Support SATA and M-sata storage;
◆ Support wireless 3G/WIFI Internet access;
◆ 2*RS422/485 is DB9 interface 4 three-wire RS-232 (Phoenix terminal interface);
◆ DC12V5A power supply (optional 9-36V wide voltage supply);
◆ Sealed and fanless design\'

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 5^th Mobile Broadwell-U single chipset CPU；

◆12inch TFT LED display and 4 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and M-sata storage

◆ Support wireless 3G/WIFI Internet access

◆ 2*RS422/485 is DB9 interface 4 three-wire RS-232 (Phoenix terminal interface),

◆ DC12V5A power supply (optional 9-36V wide voltage supply)

◆ Sealed and fanless design

Specifications

? ? ? Processor	CPU	Intel? Core?5th?Broadwell-U Soc i3/i5/i7?processor
	Memory	Integrated 2GB\4GB DDR3 1066/1333/1600MHz,1 slot can be added, up to be 12GB
	storage	Onboard SSD16/32/64/128G（optional），SATA?and MSATA，HDD?and SSD（optional）
	Internet?(LAN)	2*Intel I211AT Gigabit Lan Port
	I/O Port	2RS422/485/232?is DB9 Interface?4 three-wire RS-232 (Phoenix terminal interface), 2USB2.0,2USB3.0， 114BIT GPIO?Port， 1LINE OUT 1MIC， 2Wifi?antenna ?Port， 1power switch button， 1HDMI Max resolution support 32002000@60HZ
	Expansion bus	1*full size Mini-PCIE?socket
	Watch -dog timer	0-255 second, Sample code optional
Physical characteristics	size	316.6253.662.5mm
Physical characteristics	weight	2.75Kg
OS?Support	Operate System	Support Windows 7/Windows8/Windows8.1/Windows10/Linux
Power type support	input Voltage	DC12V5A power supply (optional 9-36V wide voltage supply)
Power type support	consumption	35W
? ? LCD?display	Display type	12inch ?TFT LED
	Max resolution	1024*768
	View	80 (left), 80 (right), 70 (UP), 70 (Down)
	Lumens (cd/m2))	350cd/m2
	Contrast	400:1
	Backlight Life	30,000 hrs (Min.)
? TOUCH PANEL	TYPE	4 Wires Resistive touch panel
	Light Transmittance	≥85%
	Controller Interface	USB?Port
	Durability(Touch Times)	>3500?million times
? ? ENVIRONMENT	Working Temperature	-20℃ ~ +60℃
	Storage Temperature	-40℃ ~ +85℃
	Relative humidity	0% ~ 90%Relative humidity, none condensation
	EMC	CE, FCC Class B, BSMI
	CERTIFICATE	CB, CCC, BSMI, UL
	Front panel protection	Front panel IP65

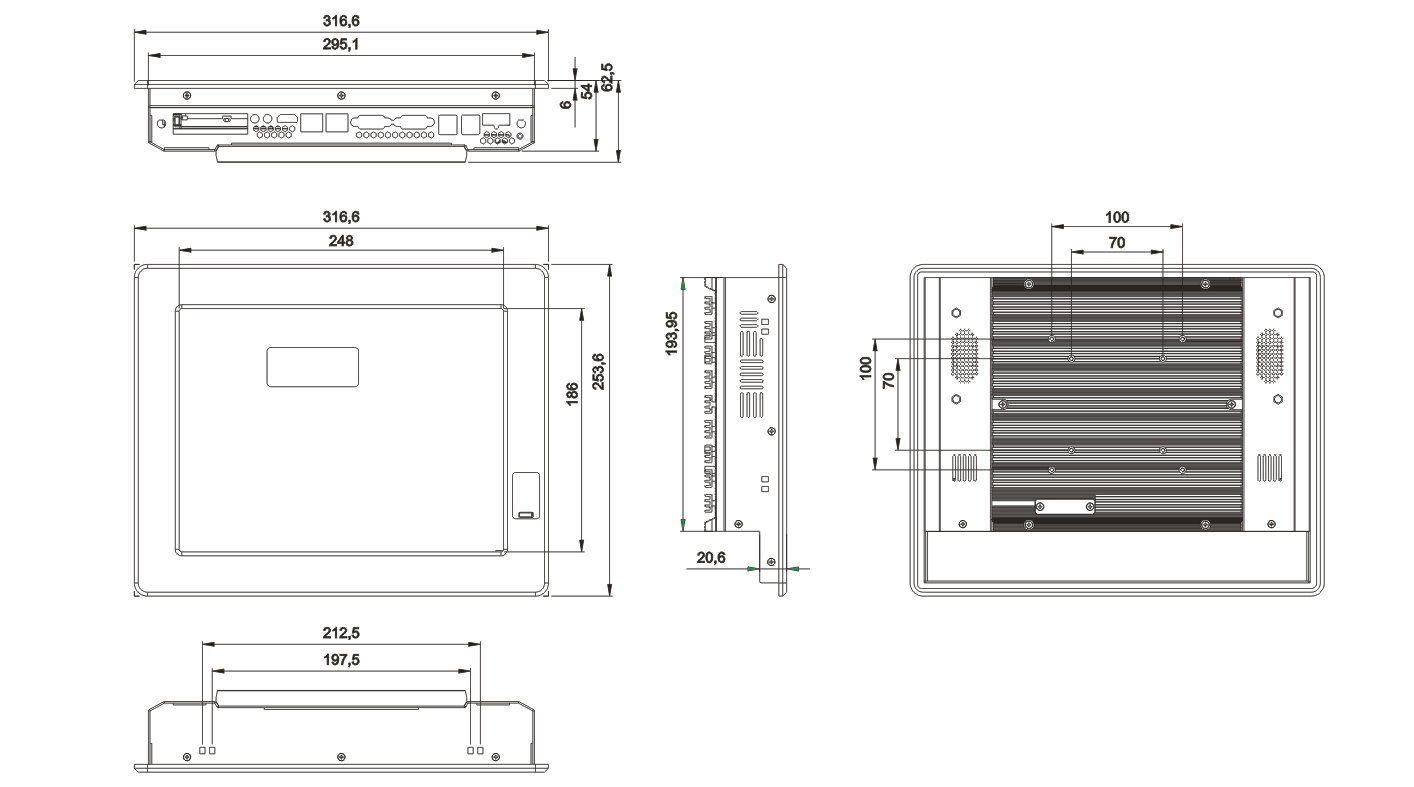

Size

Order information

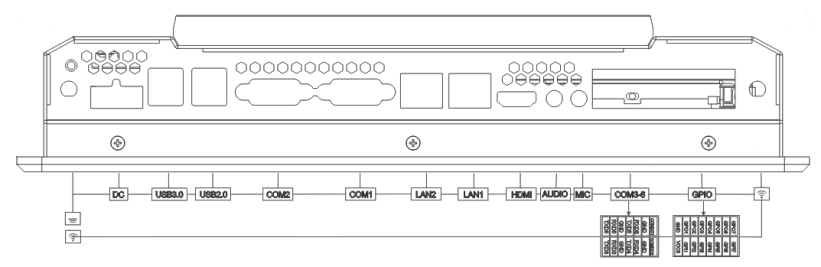

Panel I/O

Model

description

?

PPC-12A

With TPC90D?Motherboard（I3-5010U/I5-5200U/I7-5500U）

?

?
