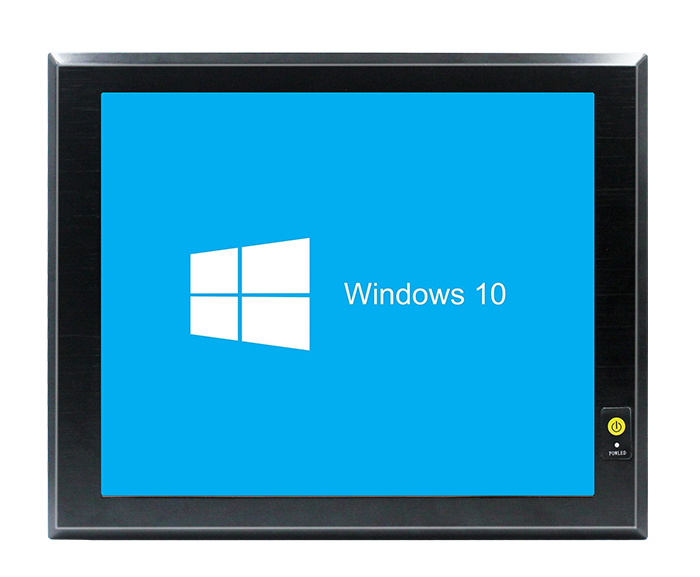

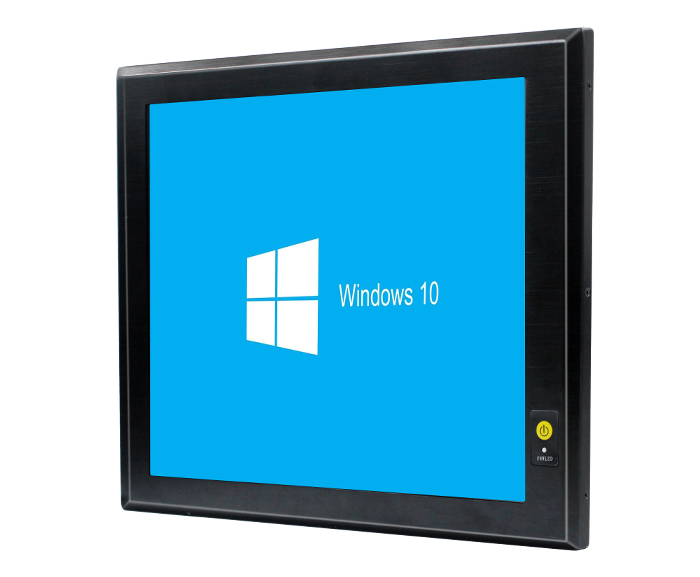

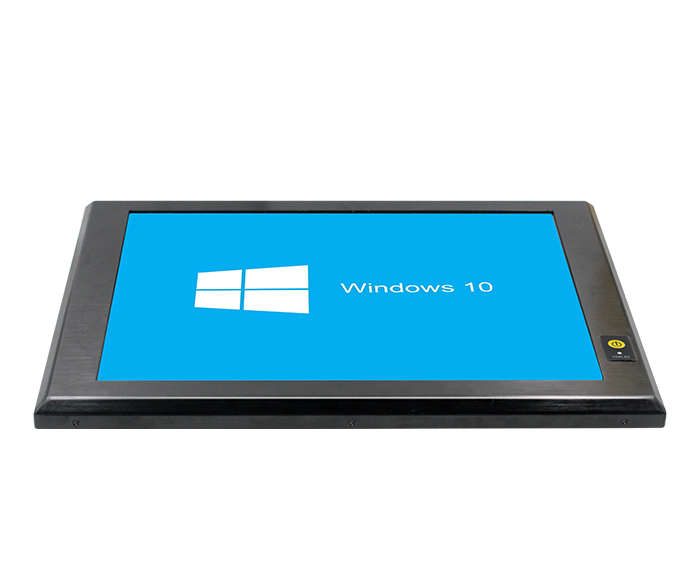

PPC-80C17A

Model : PPC-80C17A

Description :
◆ Intel? Core? 4th Haswell-U Soc i3/i5/i7 Processor；
◆ 17inch TFT LED display and 5 wires resistive Touch panel；
◆ Front panel protection Rating: IP65；
◆ Support SATA and M-SATA storage；
◆ support wireless 4G/WIFI；
◆ Reserve 2 Group Phoenix Connector for custom function）；
◆ DC12V5A power supply (optional widening voltage module, support 9-36V power supply)；

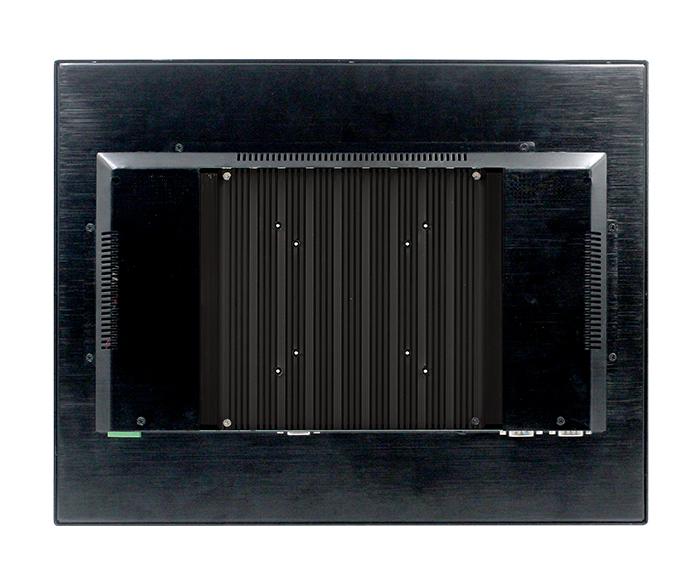

◆ Sealed and fanless design；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Intel? Core? 4th Haswell-U Soc i3/i5/i7 Processor

◆ 17inch TFT LED display and 5 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and M-SATA storage

◆ support wireless 4G/WIFI

◆ Reserve 2 Group Phoenix Connector for custom function）

◆ DC12V5A power supply (optional widening voltage module, support 9-36V power supply)

◆ Sealed and fanless design

Specifications

Processor	CPU	Intel? Core? 4^th Haswell-U Soc i3/i5/i7 Processor
	Memory	Onboard 2GB\4GB DDR3 1066/1333/1600MHz,Can add 1 slot, maximum expansion of 12GB memory
	storage	Onboard SSD16/32/64/128G（optional） SATAand MSATA，HDD and SSD（optional）
	Internet (LAN)	1*RTL8111E RJ45 Gigabit network interface

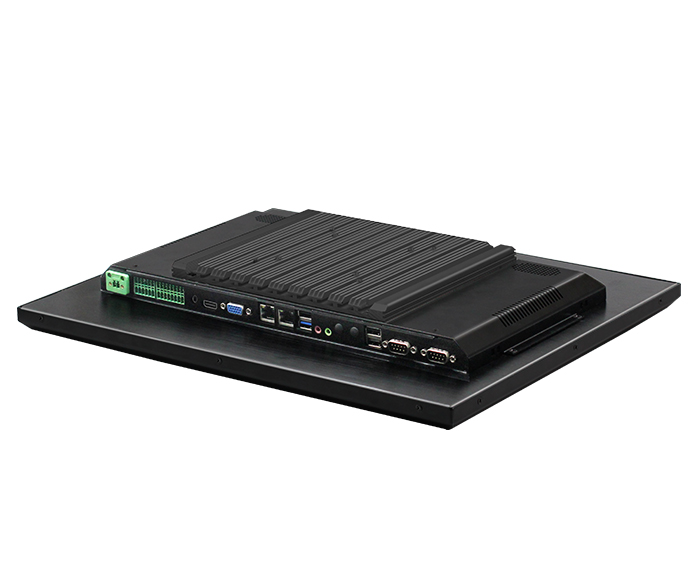

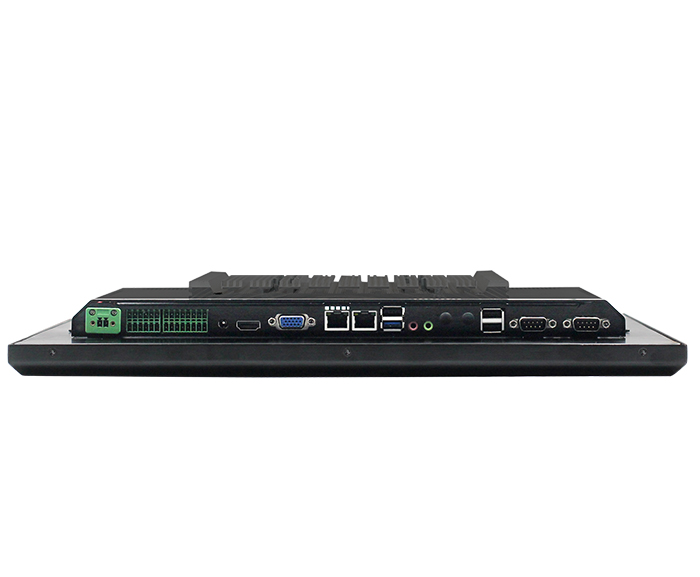

	I/O Interface	4RS-232, 2RS422/485,2DB9 Port RS485/422 4three cable RS-232， 2USB2.0,2USB3.0， 114BIT GPIO terminal， 1LINE OUT 1MIC， 2Wifi antenna Port ， 1button switch， 1VGA Maximum resolution support 2048x1536 1HDMI Maximum resolution support 32002000@60HZ
	Expansion slot	1* full size Mini-PCIE slot
	Watch-Dog timer	0-255 seconds, providing a watchdog routine
Physical characteristics	size	41532454.4
Physical characteristics	weight	4.56kg
OS support	Operate system	Support for Windows 7/Windows8/Windows8.1/Windows10/Linux/Android
Power support	Input voltage	Single input DC DC12V power supply +/-5% (optional widened voltage module, support 9-36V power supply)
LCD display	Display type	17 inch TFT LED
	Max resolution	1280*1024
	view	80 (left), 80 (right), 70 (top), 70 (bottom)
	Lumens (cd/m2)	350cd/m2
	Contrast	400:1
	Backlight Life	30,000 hrs (Min.)
Touch panel	TYPE	Five-wire resistive touch screen
	Light Transmittance	≥85%
	Controller Interface	USB interface
	Durability(Touch Times)	More than 35 million times
Environment	Working Temperature	-20°C ~ +60°C
	Storage Temperature	-40°C ~ +85°C
	Relative humidity	0% ~ 90% relative humidity, no condensation
	EMC	CE, FCC Class B, BSMI
	CERTIFICATE	CB, CCC, BSMI, UL
	Front panel protection	Front panel IP65

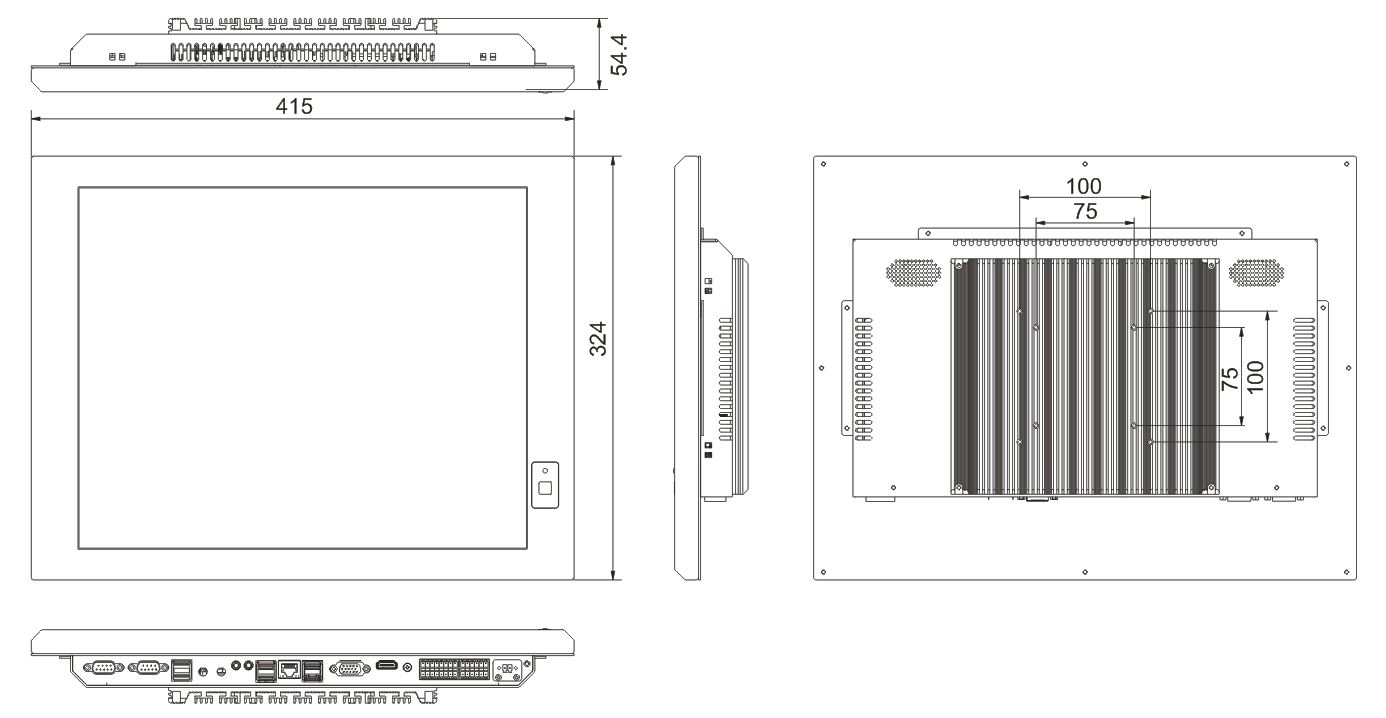

SIZE
