Description :
◆ Intel 12th generation Alder Lake-N Series Processor;
◆ 1*DDR5 4800MT/s SO-DIMM, Maximum 16GB;
◆ TPM2.0 optional, 1*HDMI, EDP/LVDS alternative;
◆ 3 x LAN, 6 x COM, 6 x USB, 8 x GPIO, 3 x M.2(SSD/WIFI/4G/5G), 1 x CAN, 1 x I2C;
◆ DC9-36V, wide voltage;
◆ Size:146x102mm;
|
Processor |
Intel 12th generation Alder Lake -N series Processors; |
|
|
EFI BIOS |
|
Memory |
1 x DDR5 4800MT/ s SO-DIMM memory slot, up to 16GB |
|
Display |
1 x HDMI 2.1; 1 x 24-bit LVDS (LVDS/eDP alternative); 1 x DP1.4; |
|
Storage |
1 x M.2 KEY-M 2280 (PCIe_X 2 NVMe) |
|
|
1 x 7Pin SATA3.0, SATA power supply 5V 2Pin |
|

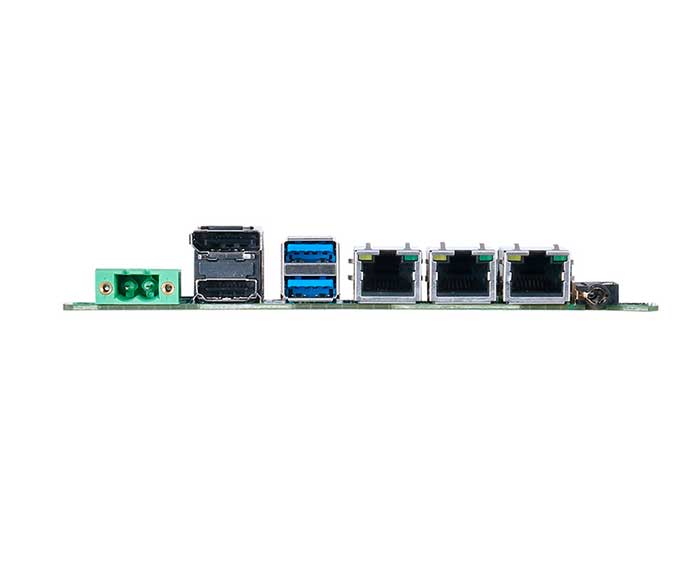

Board edge I/O interface |
1 x DC interface, 1 x DP 1.4, 1 x HDMI 2.1, 2 x USB3, 3 x RJ45 network ports (3 x i226- V, LAN2, LAN3 support POE power supply, 15W), 1 x two-in-one audio; |
|
Extended interface/function |
1 x TPM2.0 (chip optional, not included by default) |
|
|
1 x M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1 x SIM card slot |
|
|
1 x M.2 KEY-E (PCIE_X1, USB2.0) |
|
|
1 x CAN+I2C 2x3PIN, pitch 2.0 |
|
|
6 x COMs, 2 x 5Pin, pitch 2.0 (COM1 and COM2 default to RS232, RS485/RS422 can be selected through BIOS, and the other 4 x RS232) |
|
|
1 x SPK, 1x4Pin pitch PH2.0 |
|
|
1 x CL_CMOS, 1x2Pin, pitch 2.0 |
|
|
2 x USB2.0 pin headers, 2x5Pin, pitch 2.0 |
|
|
1 x CPU Smart FAN, 4Pin; 1 x system fan, 3Pin, pitch 2.54 |
|
|
1 x F_Panel, 2x5 Pin, pitch 2.0mm |
|
|
1 x 8-bit GPIO pin, 2x5Pin, pitch 2.0mm |
|
|
1 x AT/ATX, 1x2Pin, pitch 2.0 |
|
Power Supply |
DC9-36V, wide voltage |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation |
|
Operating System |
Windows10, windows11, Linux |
|
Size |
146 x 102 mm |
|
Weight |

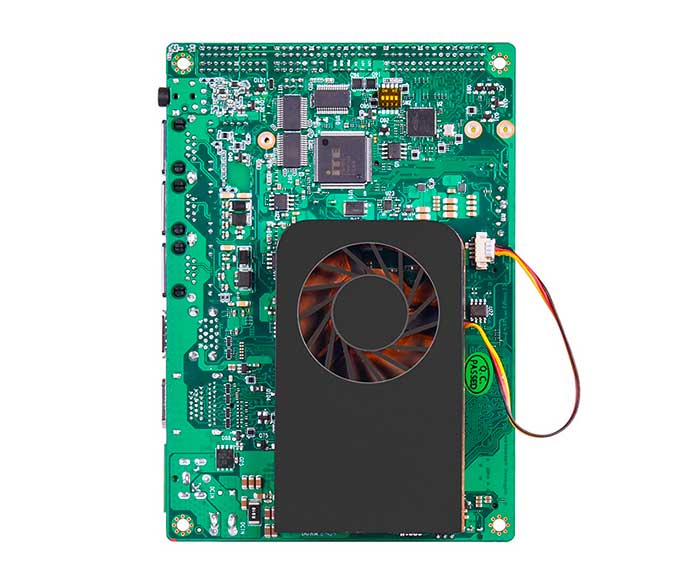

Excluding radiator 160g; |
