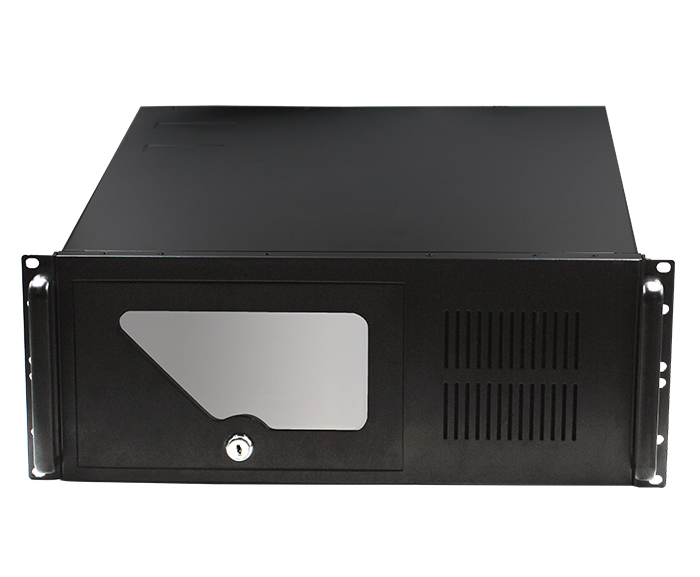

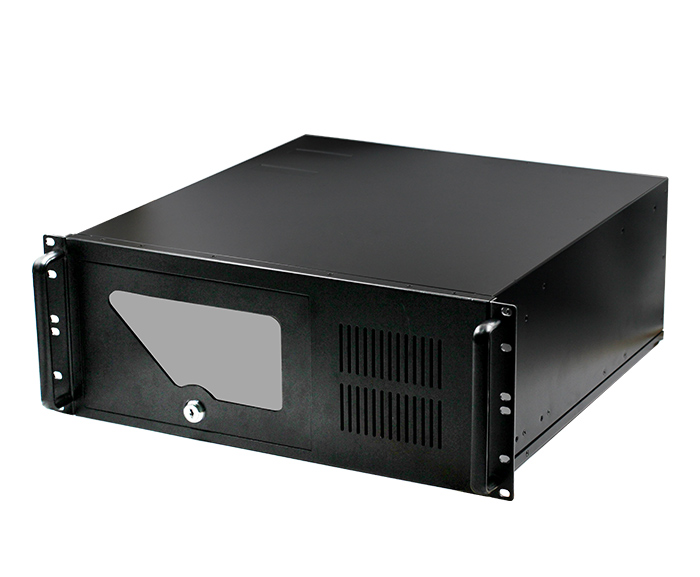

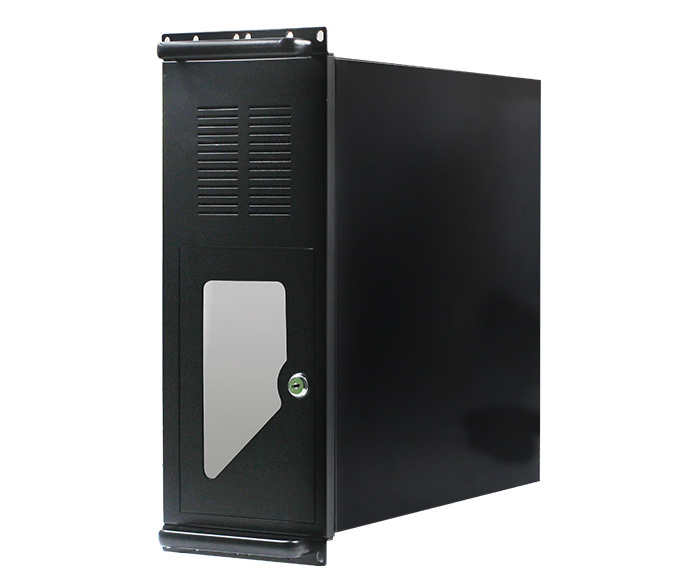

4U Computer（IA855）

Model : 4U Computer（IA855）

Description :
◆ CPU：Celeron M or Pentium M，FPGA479 or Integrated
◆ Ram onboard 512MB or 256MB
◆ North Bridge with with Intel 855GM/852GM，south Bridge ICH4M/ICH4
◆ The chipset integrates a VGA card (CRT DB15 interface)
◆ Support CF、IDE-44、IDE-40、SATA multiple interfaces storage
◆ 2*RS232 Com
◆ DC 12V Power supply

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ CPU：Celeron M or Pentium M，FPGA479 or Integrated 。

◆ Ram onboard 512MB or 256MB。

◆ North Bridge with with Intel 855GM/852GM，south Bridge ICH4M/ICH4。

◆ The chipset integrates a VGA card (CRT DB15 interface).

◆ Support CF、IDE-44、IDE-40、SATA multiple interfaces storage

◆ 2*RS232 Com

◆ DC 12V Power supply

Specifications

Model	4U Industrial computer（IA855）
size	482450178mm
material	Advanced flowerless galvanized sheet
Processor	Celeron M or Pentium M，FPGA479 or?integrated CPU
Chipset	North Bridge with with?Intel 855GM/852GM，south Bridge?ICH4M/ICH4
memory	Onboard 512MB or ?256MB
Lan	Onboard 1*100M network card onboard
Audio	onboard?AC97
Standard Fan	1?12025 fan, optional 2 6025 fans

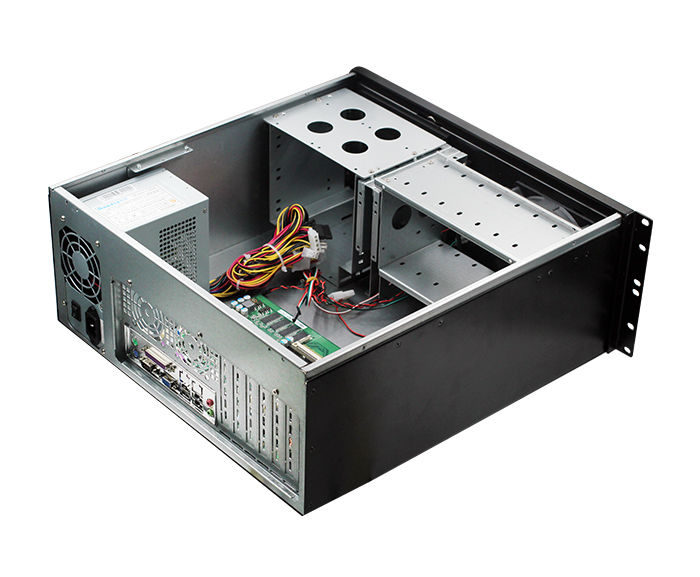

Expansion slot	The chassis supports 7 *full-height PCIE expansion slots
driver	The chassis supports 3*?5.25 optical drives
Hard disk	The chassis supports 8* 3.5-inch hard drive holes
Storage equipment	Support?CF、IDE-44、IDE-40、SATA multiple interfaces?storage
Color	Black

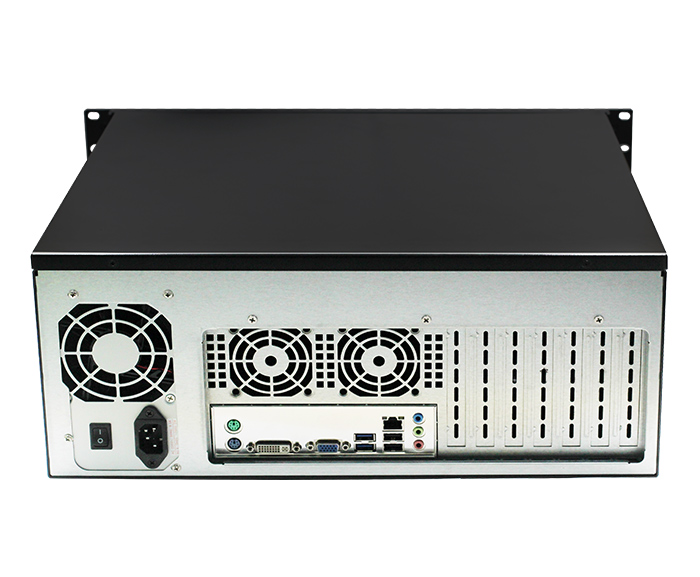

Panel interface	1VGA 1COM?1LAN,?1LPT 4USB 1MIC_OUT/LINE_OUT/LINE_IN 1*PS/2
Power supply	Dektop ATX Power supply
Net weight	10KG
Gross weight	12.0KG

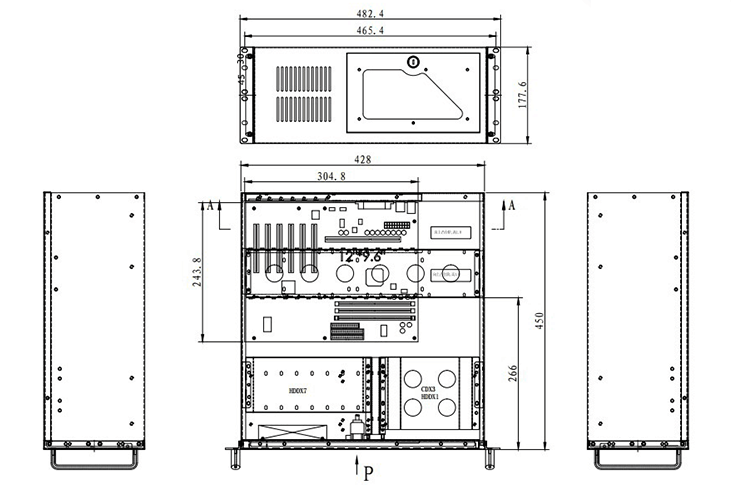

?Size
