Description :
◆ Onboard Intel Gemini Lake/Gemini Lake-R processor
◆ support TPM2.0(optional)
◆ 2*I225 2.5G Lan card
◆ 1*VGA，1*HD-MI 2.0
◆ 6*COM port； Onboard eMMC Storage Chip optional
◆ DC 12-19V
◆ Size: 120x120mm
|
CPU |
Integrated Intel Gemini Lake/Gemini Lake-R series CPU |
|
|
EFI BIOS |
|
Memory |
1*DDR4 SO-DIMM，max support 8GB |
|
Display |
1*VGA，Support Resolution 1920x1200 |
|
|
1*HDMI2.0，Support Resolution 4096x2304@60HZ，Support 4K display |
|
|
HDMI+VGA Synchronous or asynchronous display |
|
Storage |
1*SATA3 |
|
|
1*mSATA |
|
|
Onboard eMMC,32GB/64GB/128GB optional |
|
Lan port |
2*Intel i225V 2.5G lan card |
|

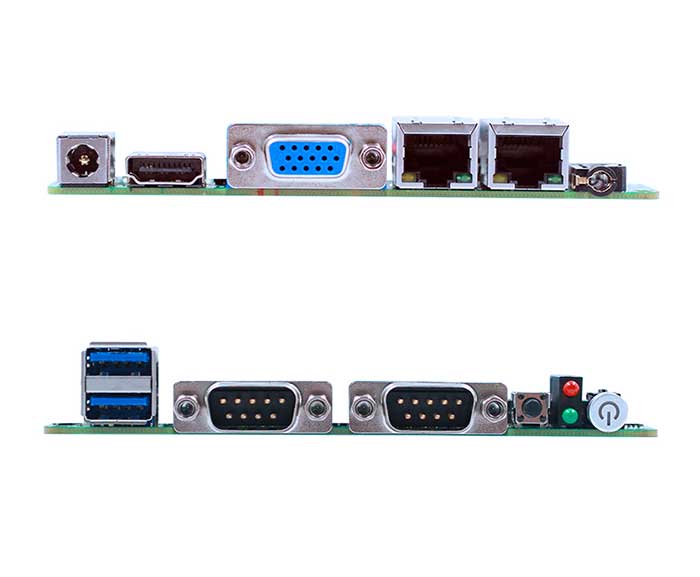

I/O port |
1*VGA，1*HDMI2.0 |
|
|
2*RJ45 |
|
|
2*USB3.0 |
|
|
2*DB9 RS232 |
|
|
1*DC JACK |
|
expansion interface/function |
0-255 seconds, watchdog routine provided |
|
|

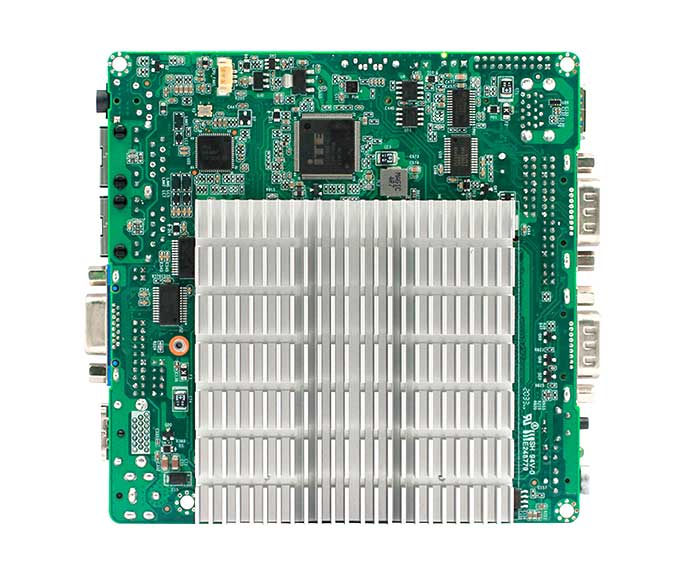

Aluminum fanless radiator (mainboard reserved fan interface can support automatic and manual fan speed adjustment) |
|
|
4*USB2.0 pin header，2x5Pin，space 2.0mm |
|
|
6*COM port（4*RS232，2*RS232/RS485 optional），RS485 Supports automatic flow direction control |
|
|
8 bit GPIO，，2x5Pin，Space 2.0mm |
|
|
1個MiniPCIe socket，Support PCIe and USB2.0 device |
|
Power supply |
DC12-19V |
|
Environment
|
Working temperature：-20℃ ~ +60℃；Working humidity:0% ~ 90% (non-condensing) |
|
|
Storage temperature：-40℃ ~ +85℃；Storage humidity:0% ~ 90% (non-condensing) |
|
OS |
Windows10，Linux |
|
Dimension |
120x120mm |
|
Weight |
With heatsink 260g，without heatsink 130g |
