Intel Alder Lake-N N150 N100 N95 N300 4LAN Intel i226-V DDR5 HD-MI 2USB3.0 Nuc Mini PC

Model : C-BOX-M3

Description :
* Onboard Intel Alder Lake-N Series Processor, N150/N100/N95/N300
* Onboard LPDDR5x memory particles up to 16GB
* 4*2.5G LAN (3*Intel 226-V, 1*RTL8156B)
* 1*HDMI2.0, 1*Type-C (USB+DP)
* 2*USB3.0, 2-in-1 audio jacks
* Power Supply:DC 12-20V, 3A/PD
* Size: 75x75x52mm

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

Processor	Onboard Intel Alder Lake-N Series Processor, N150/N100/N95/N300
	EFI BIOS
Ram	Onboard LPDDR5x memory particles up to 16GB
Storage	1*M.2 M-Key 2242, (NVMe PCIe3.0 x2/SATA3.0 protocol adaptive)
Expansion Slot	M.2 E-Key, (PCIe3.0 x1 + USB2.0 protocol), WIFI/BT

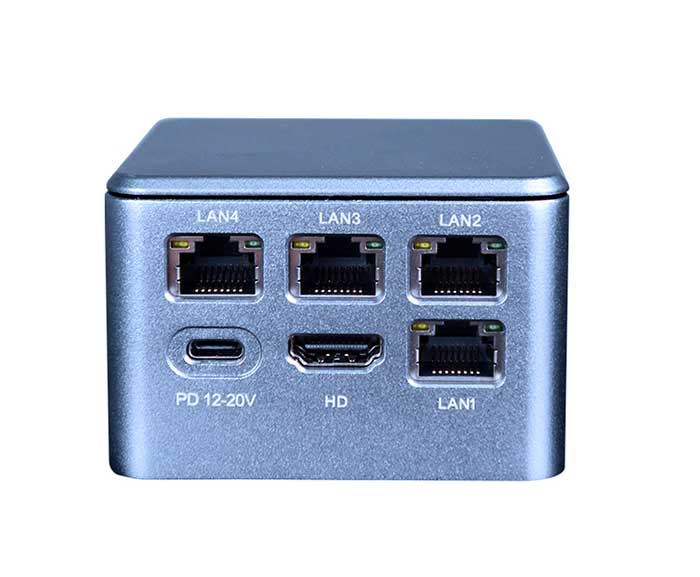

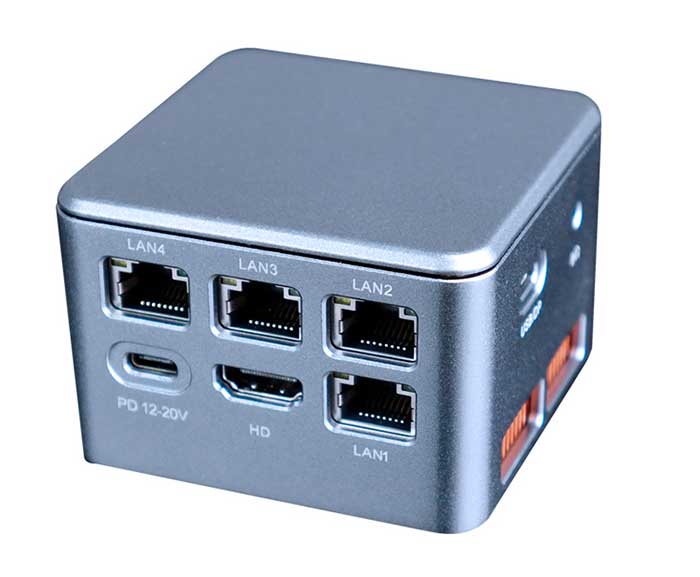

I/O port	42.5G LAN (3Intel 226-V, 1*RTL8156B)

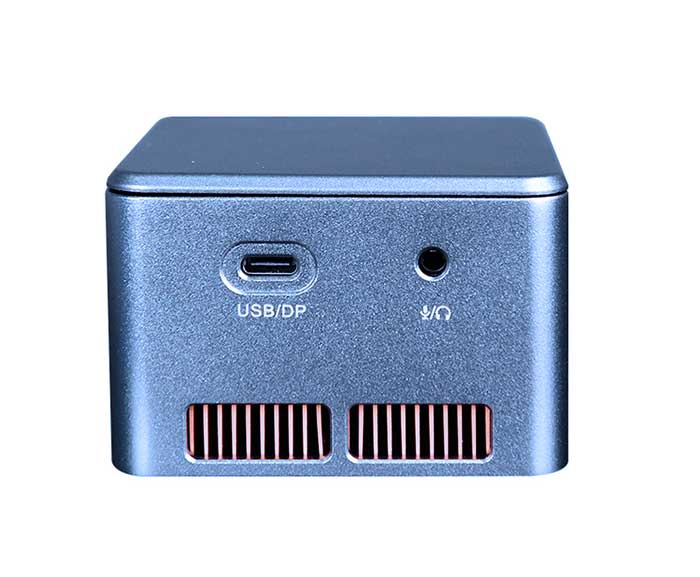

	1HD-MI2.0, 1Type-C (USB+DP)

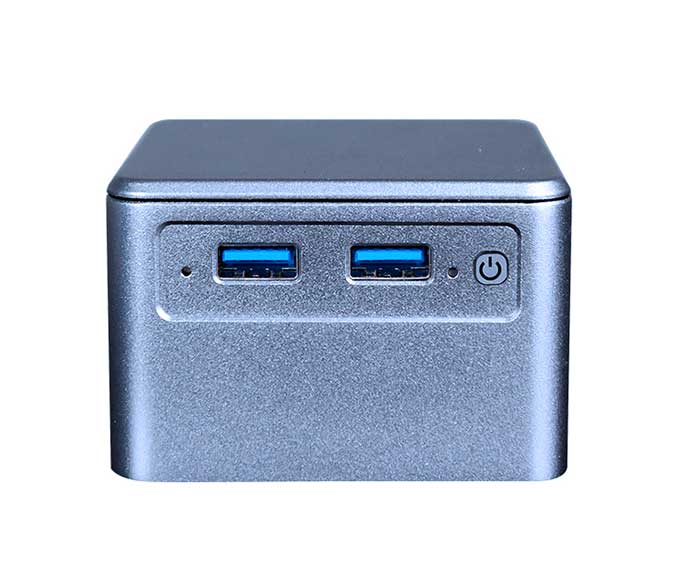

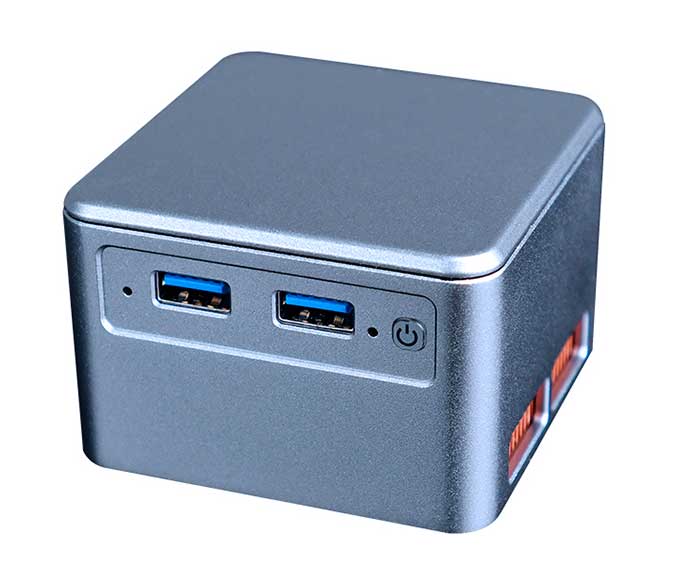

	2*USB3.0, 2-in-1 audio jacks
	Power on button, 1 reset hole
	Type-C power input, support PD power supply
Power supply	DC 12-20V, 3A/PD
Working Environment	Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
	Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90
System	Windows 10, Windows 11, Linux
Size	75x75x52mm

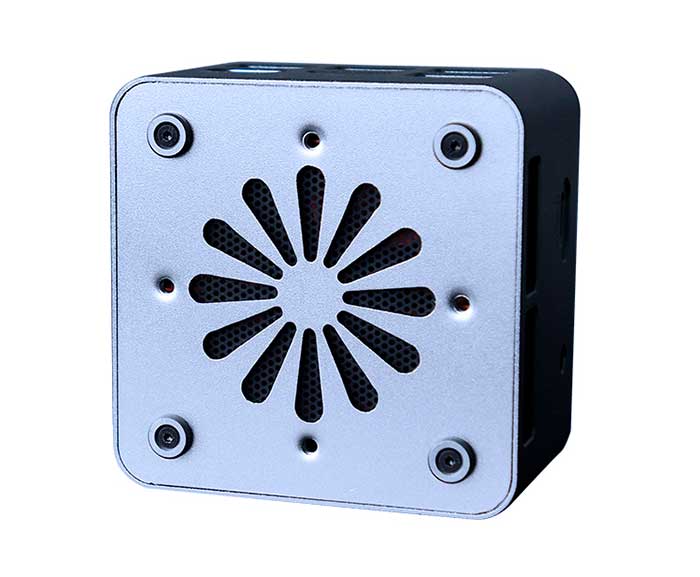

material	Metal body with plastic top cover
Weight	Packaging without adapter ~400g, with adapter ~450g

Module	Optional	Optional description
C-BOX-M3	Onboard Intel Alder Lake-N Series Processors	N150/N100/N95/N300
	Onboard Memory Pellets	8GB/16GB optional
