Intel Alder Lake-N N150 N100 N95 N300 Nuc Mini PC 1LAN Intel i226-V 2HD-MI 4*USB3.0

Model : C-BOX-M4

Description :
Onboard Intel Alder Lake-N series processor, N150/N100/N95/N300
Onboard LPDDR5x memory, up to 16GB
1*RJ45 LAN
2*HD-MI2.0, 1*Type-C
4*USB3.0
Power Supply:DC 12-20V, 3A/PD
Size:75x75x52 mm

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

Processor	Onboard Intel Alder Lake-N series processor, N95/N300
	EFI BIOS
Memory	Onboard LPDDR5x memory, up to 16GB
Storage	1*M.2 M-Key 2242(NVMe PCIe3.0 x2/SATA3.0, Protocol adaptation ）
Extension ports	M.2 E-Key，(PCIe3.0 x1 + USB2.0 protocol），WIFI/BT

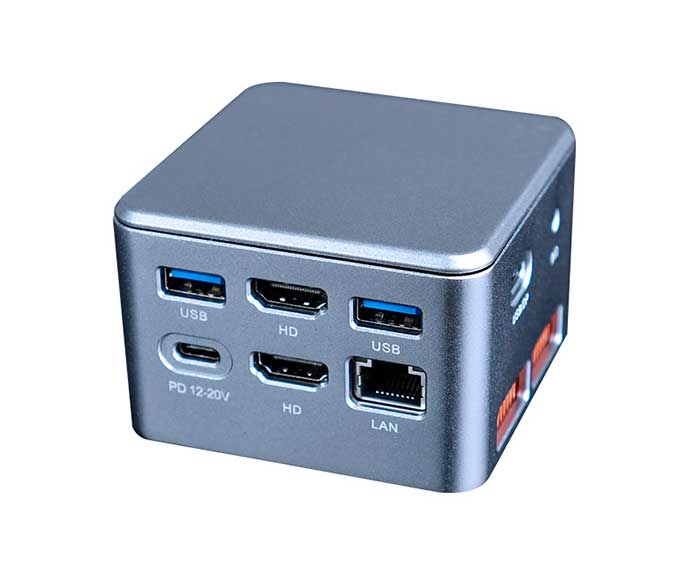

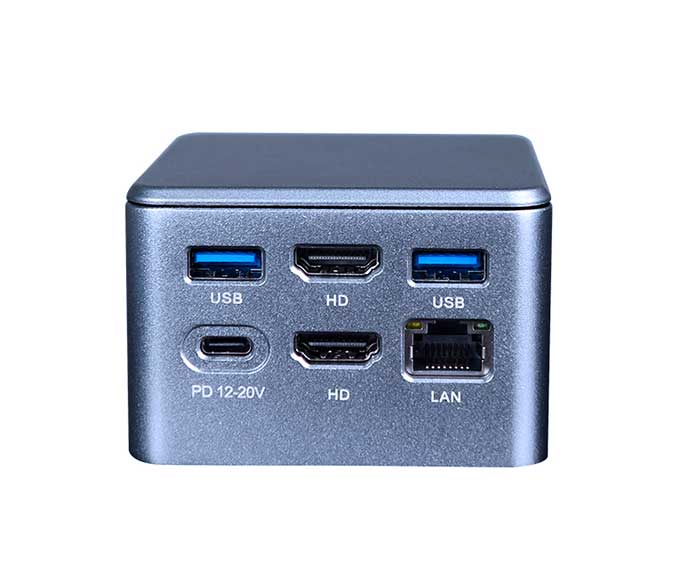

I/O ports	1*RJ45 LAN（Intel i226C-V ethernet controller supports 2.5G）

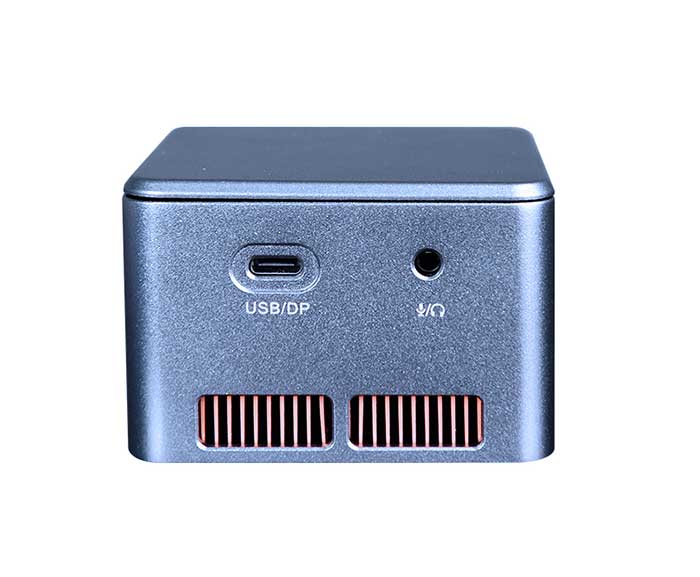

	2HDMI2.0, 1Type-C (USB+DP), 2-in-1 audio jack
	4*USB3.0
	Power button, 1*reset hole
	Type-C power input, supports PD power supply
Power supply	DC 12-20V, 3A/PD
Working environment	Operating temperature: -20℃ ~ +60℃； Working humidity: 5% ~ 90%
	Storage temperature: -40℃ ~ +85℃； Storage humidity: 5% ~ 90%
Operating system	Windows10, Windows11, Linux
Size	75x75x52 mm
Material	Aluminum alloy, Plastic top cover
Weight	About 0.5kg

Model	Optional Items	Description of options
C-BOX-M4	Onboard Intel Alder Lake-N series processor	N150/N100/N95/N300
	Onboard memory	8GB/16GB optional
