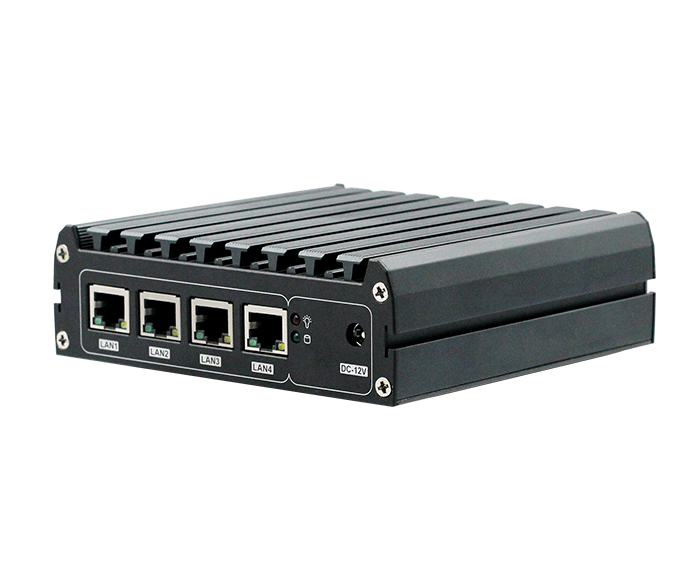

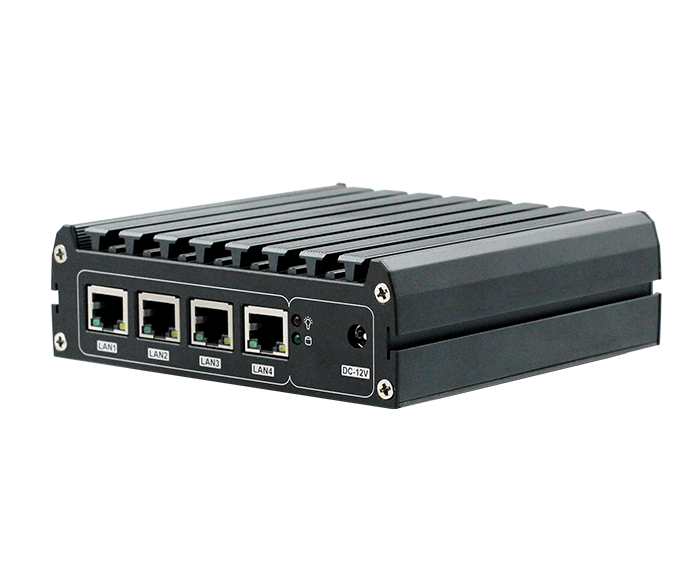

N-BOX-J2

Model : N-BOX-J2

Description :
◆ Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;
◆ DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram;
◆Onboard 32/64/128G EMMMC chipset (Optional);
◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment);
◆ I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,1*VGA display connector 1*RJ45 RS232 Port;
◆ The fanless design, no noise design, stable and efficient;
◆ 12V-19 DC Power supply;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;

◆ DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram

◆Onboard 32/64/128G EMMMC chipset (Optional)

◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)

◆ I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,1*VGA display connector 1*RJ45 RS232 Port

◆ The fanless design, no noise design, stable and efficient

◆ 12V-19 DC Power supply

Specification

? Mini PC	Model Name	N-BOX-J2
	Color	Color
	size	13412645.3 mm
	material	6063
? ? Motherboard	Chipset	Baytrail-I/D/M serial processor chipset
	CPU	Support Baytrail-I/D/M serial CPU?(J1900 J1800)
	Ram	Single channel DDR3 1066/1333/1600MHz，max support 8G
	Graphics card	Intel HD Graphics
	Expansion	1*MINI-PCIE interface for loading wifi, 3G/4G modules (USB signal devices only)
		1*MINI-SATA interface for loading SSD solid state drives
		1* onboard EMMC 32/64/128G (optional)
Storage	HDD	2.5inch laptop hard disk
	SSD	SSD
	EMMC	32/64/128G（optional ）
Function	Display output	HDMI
	Internet Output	4*Intel I211?Lan Port
	USB	1USB2.0、1USB3.0

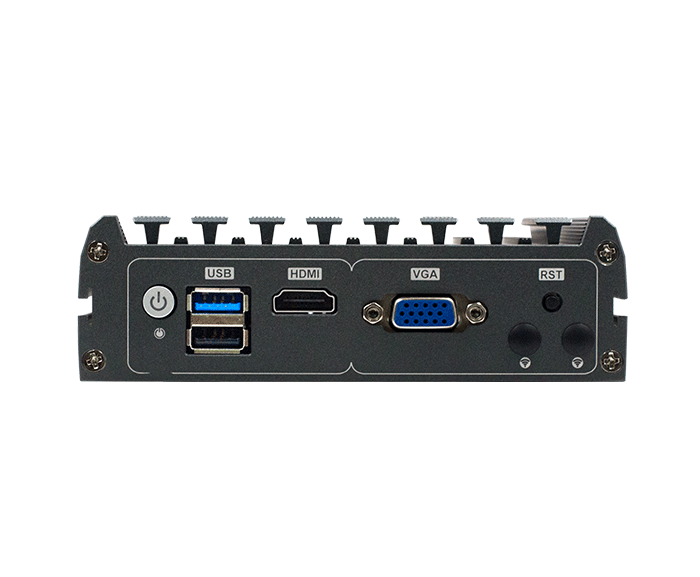

	Front I / O interface	1* power switch (with indicator light), 1* reset button, 1HDMI, 1RJ45 interface RS232, 2*USB

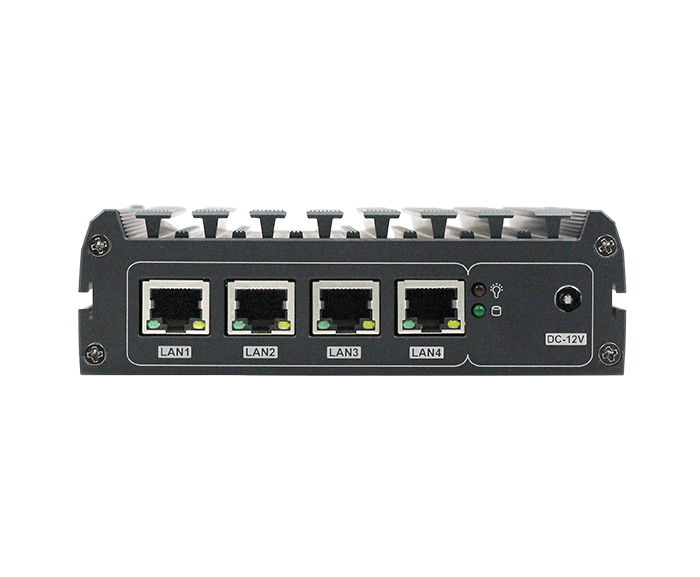

	Rear I / O connector	4Intel I211 high-performance Gigabit LAN, 1 power indicator, 1* hard disk indicator, 1*DC power supply interface
	Working temperature	-10~60℃
	Operating system	Windows7、Windows 8、Windows8.1 Windows10、linux
	Power supply	DC12-19V?power supply

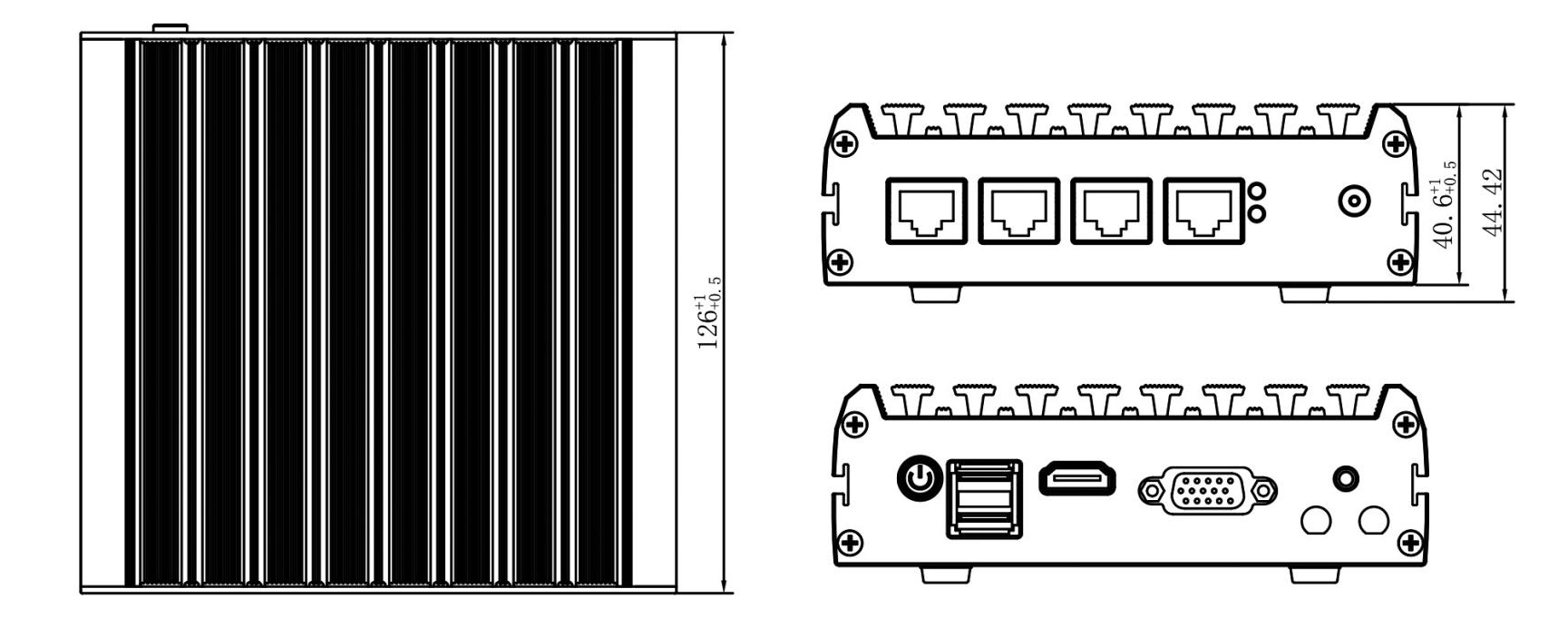

?Size?

Order information

Model

description

CPU?optional

BT19NA4L-J1900/E3845

Integrated Celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 Socket?ram ,max to 8gb

Embedded 32G/64/128G EMMC?chipset （optional）

J1900?E3845(quad core）

BT19NA4L-J1800/n2806

Integrated celeron Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

DDR3 SODIMM 204 Socket?ram socket ,max tobe 8gb ram

Embedded 32G/64/128G EMMC?chipset (optional）

J1800（dual core）
