N-BOX-J4

Model : N-BOX-J4

Description :
◆Apollo lake serial Processor;
◆N3450\\ N4200\\ E3940 ;
◆ DDR3 SODIMM 204 Socket Ram socket ;
◆ 2*Intel I211AT Gigabit Ethernet；
◆ Onboard 32/64/128G EMMC Chipset（optional）;
◆ 1*RJ45 Port, RS232；
◆VGA max resolution support 2048x1536;
◆HDMI max resolution support 3840*2160;
◆ Single input DC power supply, DC12-19V power supply；
◆ Size: 134*126*40.6 mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Apollo lake serial Processor

◆N3450\ N4200\ E3940

◆ DDR3 SODIMM 204 Socket Ram socket

◆ 2*Intel I211AT Gigabit Ethernet；

◆ Onboard 32/64/128G EMMC Chipset（optional）

◆ 1*RJ45 Port, RS232；

◆VGA max resolution support 2048x1536

◆HDMI max resolution support 3840*2160

◆ Single input DC power supply, DC12-19V power supply；

◆ Size: 134*126*40.6 mm；

Specification

CPU	CPU	Apollo lake?serial Processor
	CPU package	BGA
	Chipset	Apollo lake?single chip set
	BIOS	EFI BIOS
Ram	Technology Architecture	Single channel DDR3L?1066/1333/1600/1866MHz
	Capacity	Max support 8GB?DDR3L Ram
	Socket	DDR3 SODIMM 204 Socket
? Video	Graphics controller	Intel HD Graphics
	VGA	VGA?max resolution support 2048x1536
	HDMI	max resolution support3840*2160
	Dual display	VGA+HDMI Synchronous or asynchronous

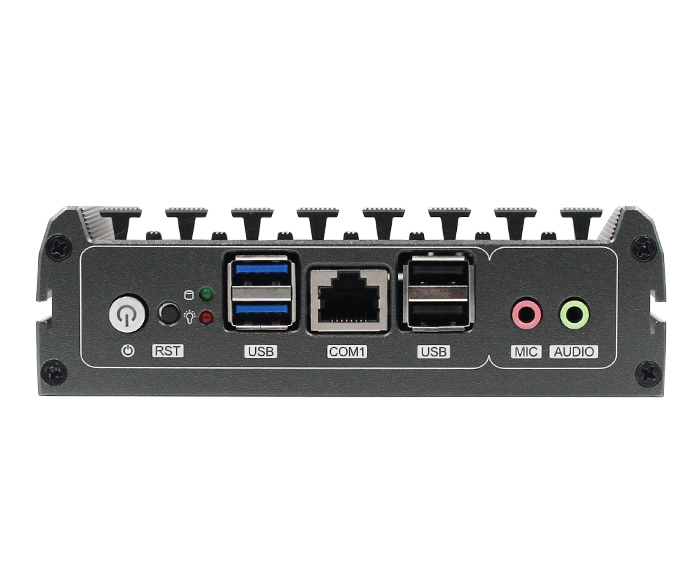

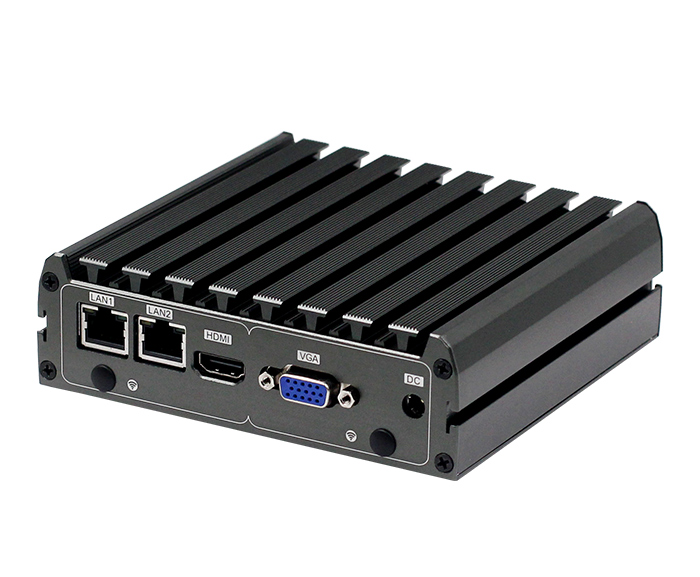

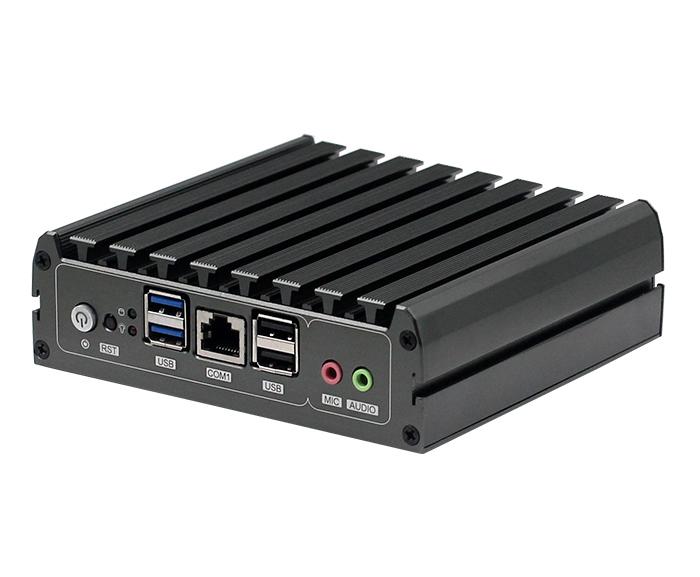

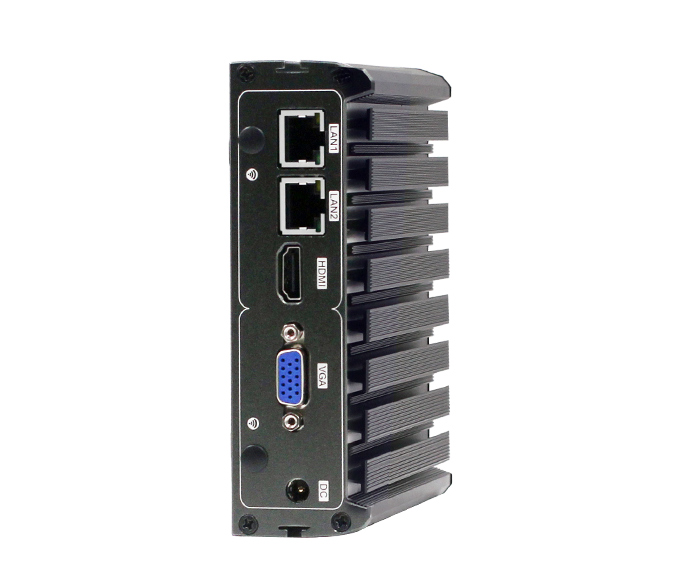

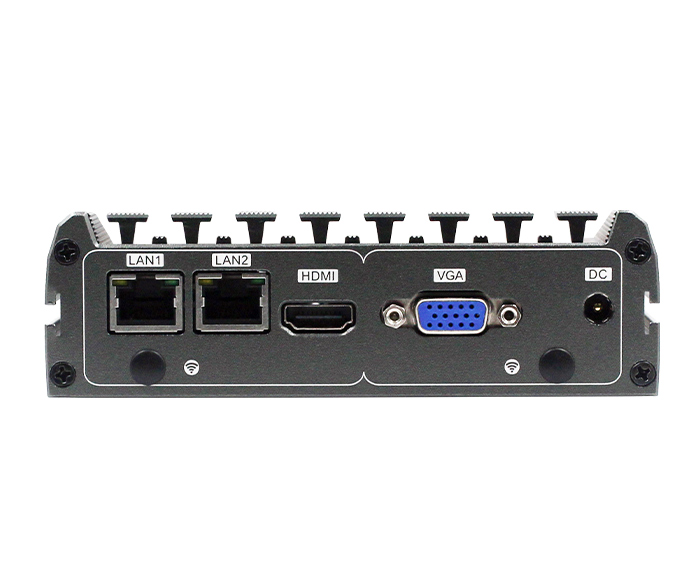

I/O?back panel	Ports	1VGA?1HDMI 2USB2.0 2USB3.0?2LAN 1 quick start button with indicator light 1* restart button 1Line_out 1MIC 1* power indicator 1* hard disk indicator
Internet	Controller	2*Intel I211ATHigh-performance Gigabit LAN，RJ45 Port
? Input/output interface	USB	2USB2.0 2USB3.0 Max support+5V/1A
	Com	1*RJ45 Port RS-232
	Audio	1LINE OUT 1MIC
Expansion bus	Mini-PCle	1* Mini-PCIe?socket ,support?PCIE and USB signal equipment
Storage	SATA	1*standard SATAII Port, Maximum transfer rate 3Gb/s
	M-SATA	1*M-SATA?Socket,?Support SanDisk protocol, maximum?rate 3gb/s
	EMMC	Support32/64/128G(optional）
POWER SUPPLY	Power Type	Wide Voltage 12-19V
? WORKING ENVIRONMENT	Working temperature	-20℃?~ +60℃
	Storage temperature	-40℃?~ +85℃
	Working humidity	0% ~ 90%(non-condensing)
	Storage humidity	0% ~ 90%(non-condensing)
MEASURE	Size	13412640.6 mm
MEASURE	Weight	1.5KG
Certification	?	CE,ROSH,FCC

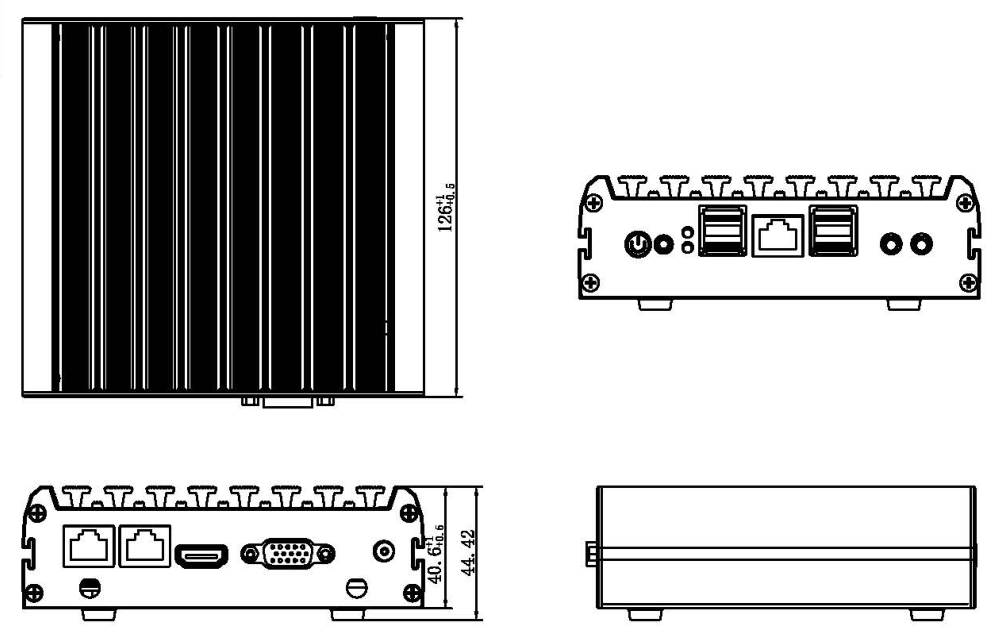

Size
order information

Model

Description

CPU?optional

AP42NC

Integrated Intel Apollo lake?serial CPU

?

N4200 四核 1.1GHz up to 2.5GHz

N3450四核1.1GHz up to 2.2GHz

E3940四核1.1GHz up to 1.8GHz
