V-BOX

Model : V-BOX

Description :
◆ With Baytrail-D/I/M serial CPU
◆ J1900\\J1800\\N2806\\N2900
◆ Integrated Onboard 2GB/4GB DDR3L Ram
◆ Onboard 16/32/64/128G EMMC（Optional）
◆ 1*Cfast Slot
◆ Providing 2*HDMI，4*USB
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply，DC12VV ◆ size: 166*106.6*41 mm

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ With Baytrail-D/I/M serial CPU

◆ J1900\J1800\N2806\N2900

◆ Integrated Onboard 2GB/4GB DDR3L Ram

◆ Onboard 16/32/64/128G EMMC（Optional）

◆ 1*Cfast Slot

◆ Providing 2*HDMI，4*USB

◆ Support power-on automatic boot function, jumper selection

◆ Single input DC power supply，DC12V

◆ size: 166*106.6*41 mm

Specification

Model	V-BOX
Size	166106.688.3 mm
Processor	Support Baytrail-I/D/M Processor?(J1900 N2900 J1800 N2806)
Chipset	Suppport Baytrail-I/D/M Processor
Memory	Onboard 2GB/4GB DDR3 Ram
Expansion slot	1 DDR3 SODIMM 204 Socket?Max expansion to be 8G
Lan	Onboard ?4*Intel I211 Gigabit Ethernet
Audio	Onboard ?HDA ALC662
storage	1Cfast 1SATA??Onboard EMMC16/32/64/128G Optional
Color	sliver
Panel interface	4LAN ?1COM 1*DC.
Backpanel interface	1switch button??2HDMI 3USB2.0 1USB3.0 1*reset button
standard	112V 60W?Power supply??2WIFI?cables

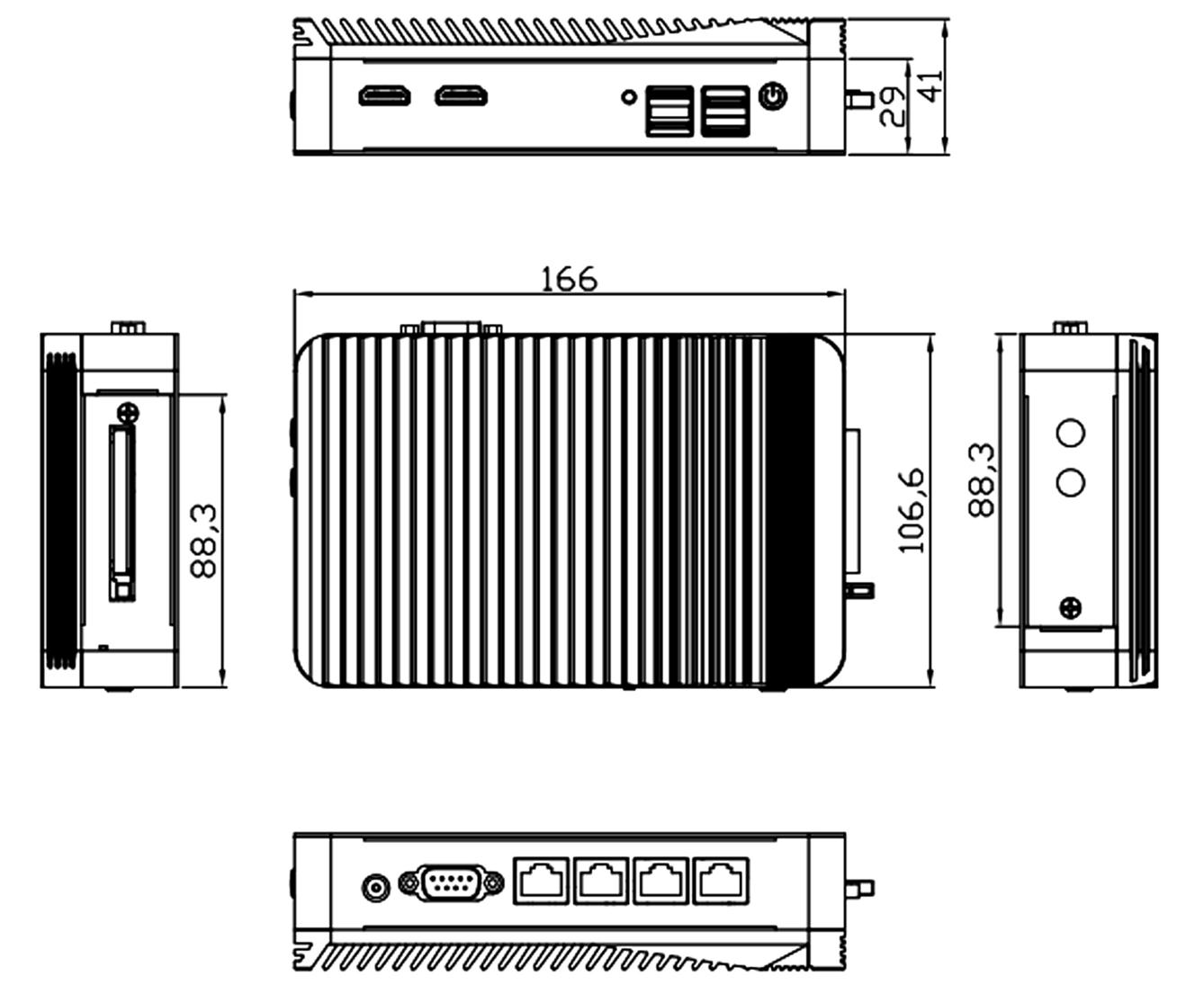

? Szie?

Order information

Model type

description

CPU?optional

?

V-BOX-J1900

Integrated Baytrail-D/I/M J1900

Quad core 2.0Ghz up to2.4Ghz

Integrated 2G/4GDDR3，（?max to be 8GDDR3)

Integrated32/64/128G EMMC(optional）6 com default

?

J1900,N2900(quad ?core）

?

V-BOX-N2806

Integrated celeron Baytrail-D/I/M N2806 dual1.6Ghz up to2.0Ghz，

Integrated2G/4GDDR3，（max to be 8GDDR3),

Integrated32/64/128G EMMC(optional）6 com default

?

J1800,N2806（dual core）
