Q-BOX（D525)

Model : Q-BOX（D525)

Description :
◆ Integrated Intel Atom D525 processor
◆ Integrated 2GB/4GB DDR3
◆ Integrated Intel GMA3150 Graphics core graphics card
◆ Provide 2 or 1 dual Gigabit Ethernet port, 6* serial port, 4*USB
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply, DC12V
◆ Structure 205*160*66CM

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel Atom D525 processor
◆ Integrated 2GB/4GB DDR3
◆ Integrated Intel GMA3150 Graphics core graphics card
◆ Provide 2 or 1 dual Gigabit Ethernet port, 6* serial port, 4*USB
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply, DC12V
◆ Structure 205*160*66CM

specification:

model

Q-BOX(D525)

size

205*160*66mm

processor

Intel Atom Processor D525CPU

chipset

ICH8

RAM

Onboard 2GB or 4GB DDDR3 memory

Expansion slot

1*Mini PCI-E slot

Network card

1*Realetk RTL8111EL Gigabit LAN

Audio

Realetk ALC662 6-channel HD audio core provides 1*Mic_in, 1*Line_out

Storage device

1*2.5′′ SATA hard drive, 1*M-SATA SSD interface

colour

black

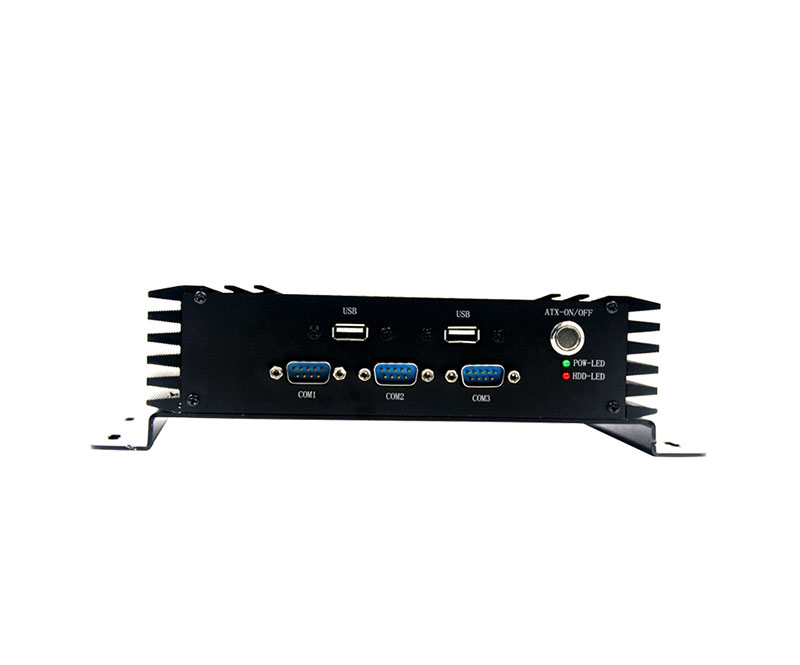

Panel interface

2*USB、3*COM

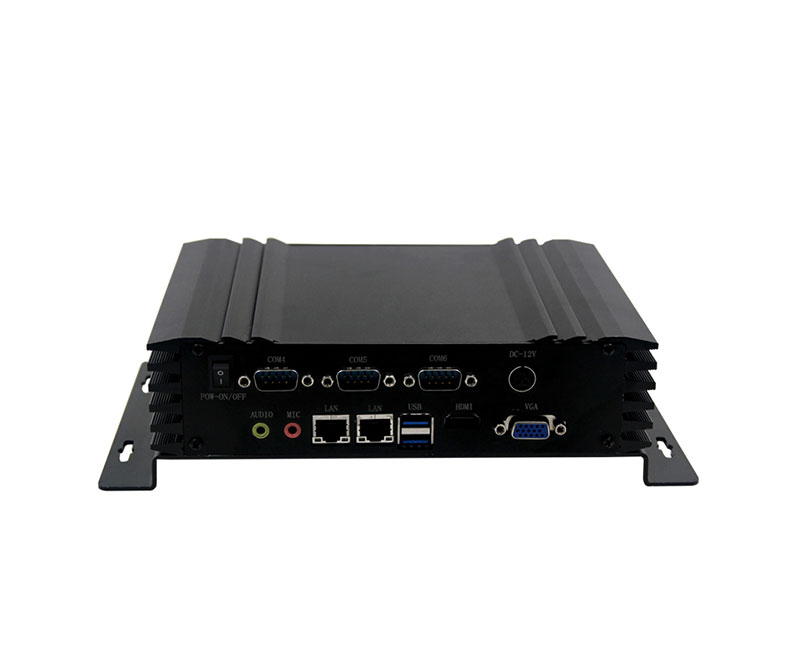

Backplane interface

1*VGA、4 or2*USB、1or2*LAN、1*Mic_in、1*Line_out、3*COM、1*DC_IN

Standard

1*12V5A60W power adapter, 1*CD

package

Packing box size: 280*215*123mm
Gross weight: 2.1kg (including power supply), 1.75kg (excluding power supply)
Net weight: 1.5kg

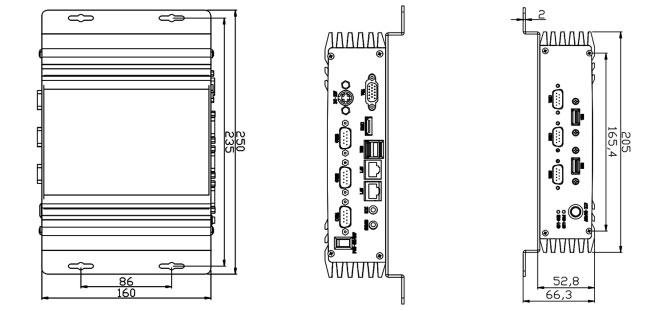

Size:(mm)

Ordering Information:

model	Description	CPU optional
QBOX-N550	2GB DDR3 memory 2.5"320G/500G/1T notebook mechanical hard drive 16G/32G/64G/128G Solid State Drive	?N550 (1.5GHz, 8.5w power consumption) ?N570(1.66GHz, 8.5w power consumption) ?Dual-core four-threaded
QBOX-N450	?2GB DDR3 memory 2.5"320G/500G/1T notebook mechanical hard drive 16G/32G/64G/128G Solid State Drive	N450 (1.66GHz, 5.5w power consumption) N455 (1.66GHz, 6.5w power consumption) single-core dual-threaded
QBOX-D525	2GB DDR3 memory 16G/32G/64G/128G Solid State Drive	D525 (1.8GHz, 13w power consumption ) dual-core four-threaded

Packing List:

1*host

1*Power Adapter

1*User's Guide

Optional Accessories:

product name	Specifications
Power Adapter	??12V5A four cores
Notebook Hard Drive	320G/500G/1T
SSD hard drive	8G/16G/32G/64G/128G
WIFI module	short card/long card
3G module	short card/long card
