Q-BOX（D2550)

Model : Q-BOX（D2550)

Description :
◆ Integrated IntelD2550/N2600/N2800 processor
◆ Integrated 2GB/4GB DDR3 memory
◆ Integrated Intel GMA3650 Graphics core graphics card
◆ Provide 1*VGA, 1*HDMI, 2*LAN, 6* serial port
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply, DC12V
◆ Structure 205*160*66CM

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated IntelD2550/N2600/N2800 processor
◆ Integrated 2GB/4GB DDR3 memory
◆ Integrated Intel GMA3650 Graphics core graphics card
◆ Provide 1*VGA, 1*HDMI, 2*LAN, 6* serial port
◆ Support power-on automatic boot function, jumper selection
◆ Single input DC power supply, DC12V
◆ Structure 205*160*66CM

specification:

model	Q-BOX(D2550)
size	20516066mm
processor	Intel Atom Processor N2600（1.6GHz）/ N2800（1.86GHz）/D2550(1.86GHz)
chipset	NM10
RAM	Onboard 2GB/4GB DDR3 memory
Expansion slot	1*Mini PCI-E slot
Network card	2*Realetk RTL8111EL Gigabit LAN
Audio	Realetk ALC662 6-channel HD audio core provides 1Mic_in, 1Line_out
Storage device	12.5′′ SATA hard drive, 1M-SATA SSD interface
colour	black

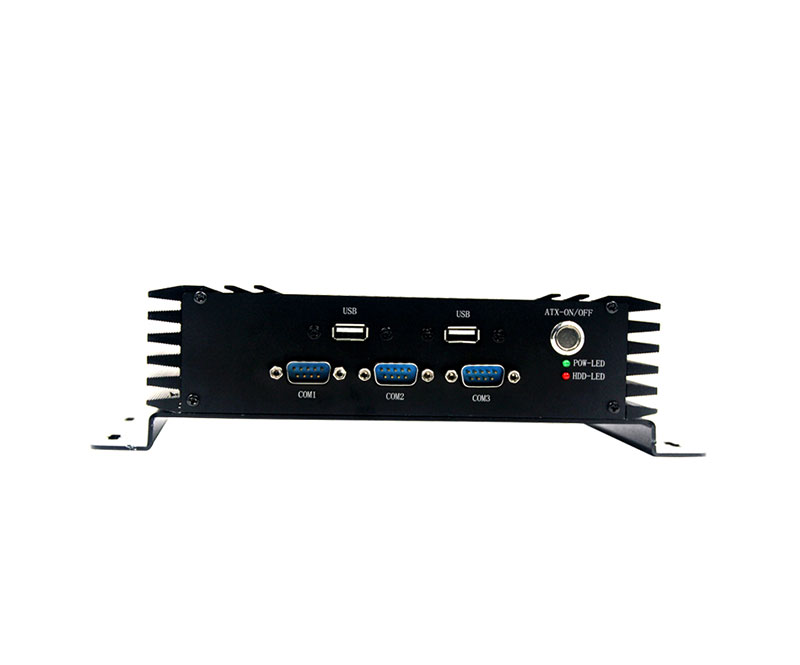

Panel interface	2USB、3COM

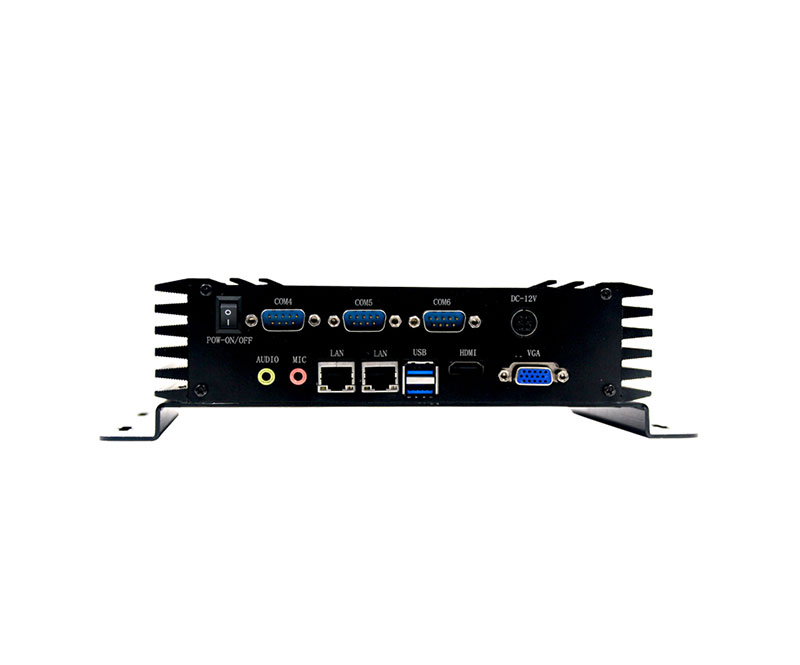

Backplane interface	1VGA、1HDMI、2USB、2LAN、1Mic_in、1Line_out、3COM、1DC_IN
Standard	112V, 60W power adapter, 1CD
package	Packing box size: 280215123mm Gross weight: 2.1kg (including power supply), 1.75kg (excluding power supply) Net weight: 1.5kg

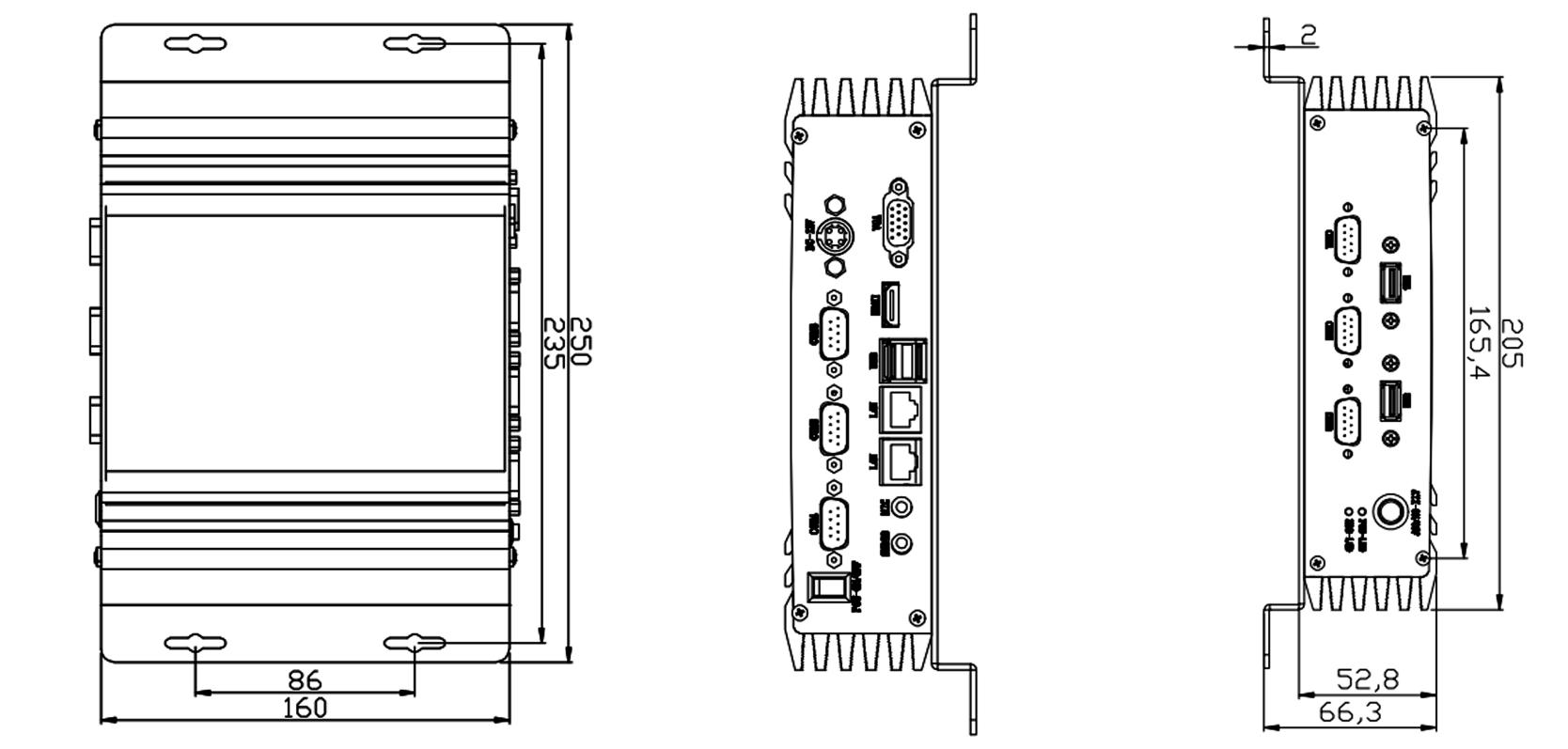

Size:

Ordering Information:

Model	Description	CPU optional
QBOX-D2550	2GB/4GB DDR3 memory 2.5"320G/500G/1T notebook mechanical hard disk 16G/32G/64G/128G Solid State Drive	D2550 (1.86GHz, 10w power consumption) ????????dual core four threads
QBOX-N2600	2GB/4GB DDR3 memory 2.5"320G/500G/1T notebook mechanical hard disk 16G/32G/64G/128G Solid State Drive	N2600 (1.6GHz, 3.5w power consumption) ???????Dual-core four-threaded
QBOX-N2800	2GB/4GB DDR3 memory 2.5" 320G/500G/1T notebook mechanical hard disk 16G/32G/64G/128G solid state drive < /p>	N2800 (1.86GHz, 6.5w power consumption) ???????Double-core four-thread < /span>

Packing List:

1*Host

1* User's Guide

Optional Accessories:

product name	Specifications
Power Adapter	12V5A four cores
Notebook Hard Drive	320G/500G/1T
SSD Hard Drive	8G/16G/32G/64G/128G
WIFI module	Short/Long Card
