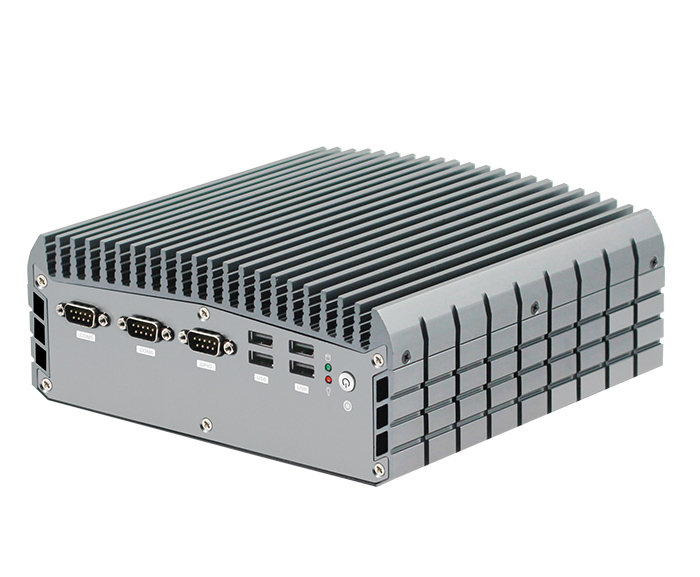

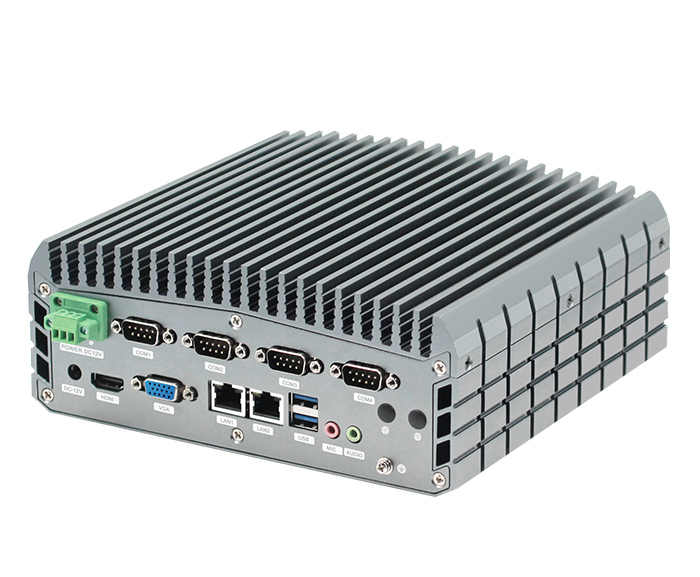

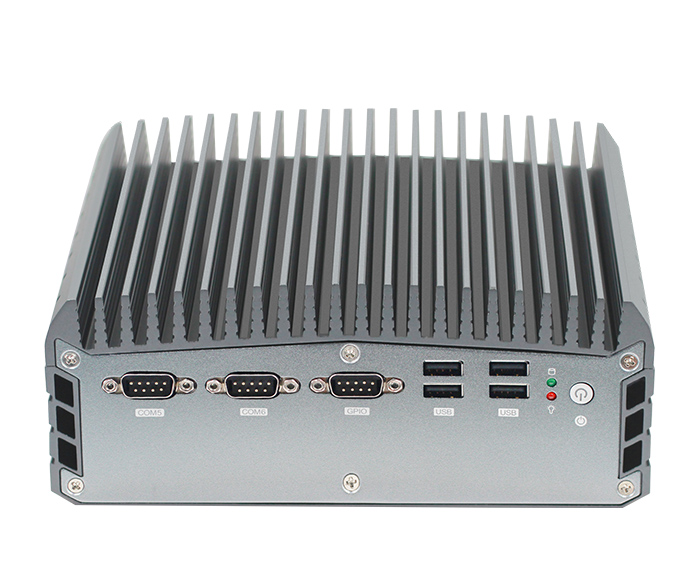

Q-BOX-S3

Model : Q-BOX-S3

Description :
◆ with Intel 8th Whiskey Lake-U Celeron,Core i3/i5/i7 processor；
◆ 2 *DDR4 SODIMM 260 Socket；
◆ Providing 1*VGA,1*HDMI 1.4（support 4k OUTPUT）；
◆ 4*RS-232, 2*RS422/485 Optional，RS485 supports automatic flow direction control (optionally 6 RS232 or 1 RS485 / RS422, 5 RS232);
◆ Support auto power on function, jumper selection;
◆ Single input DC power supply, DC12V;
◆ Structure 236 * 185 * 85mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ with Intel 8^th Whiskey Lake-U Celeron,Core i3/i5/i7 processor；

◆ 2 *DDR4 SODIMM 260 Socket；

◆ Providing 1*VGA,1*HDMI 1.4（support 4k OUTPUT）；

◆ 4*RS-232, 2*RS422/485 Optional，RS485 supports automatic flow direction control (optionally 6 RS232 or 1 RS485 / RS422, 5 RS232)

◆ Support auto power on function, jumper selection;

◆ Single input DC power supply, DC12V;

◆ Structure 236 * 185 * 85mm；

Specifications

Model	Q-BOX-S3
size	23618585mm
Processor	Integrated Intel 8th Whiskey Lake-U Celeron,Core i3/i5/i7 processor Celeron 4205 ?15W 1.80GHZ I3-8145u 15W 2.1-3.9ghz I5-8265U 15w 1.6-3.9ghz I7-8565U 15W ?1.8-4.6ghz
Chipset	Intel? Whiskey Lake-U serial SOC
Ram socket	2?*DDR4?SODIMM 260?Socket, max support 64gb Ram
Lan	onboard?2*?Intel I211/I210 gigabit lan Port or single lan Port optional
Dual LVDS and EDP	LVDS supports dual-channel 24-bit output, the highest resolution is 1920 x 1200 EDP, the highest supported resolution is 4096 * 2304 @ 60Hz (LVDS and EDP display can only choose one)
VGA	VGA?Max ?resolution support 2048x1536
HDMI	Max Resolution support ?4096*2304@30Hz
Audio	Onboard ?HDA ALC662
USB	4 * USB3.1 (USB3.1 GEN2 is backward compatible), when using Celeron Pentium processor, USB can only reach GEN1 6 USB2.0
Com	4RS-232, 2RS422/485(Can choose 6 RS232 or 5 RS232 and 1 RS422 / RS485), RS485 supports automatic flow direction control)
Storage equipment	1SATA3.0 1MSATA 2standard SATA3?Ports, maximum transfer rate??6Gb/s（SATA1 or MSATA optional，SATA2 or onboard SSD optional） 1 M-SATA Scoket, support SANDISK Protocol，maximum transfer rate?6Gb/s（or SATA1 optional）
Color	Sliver

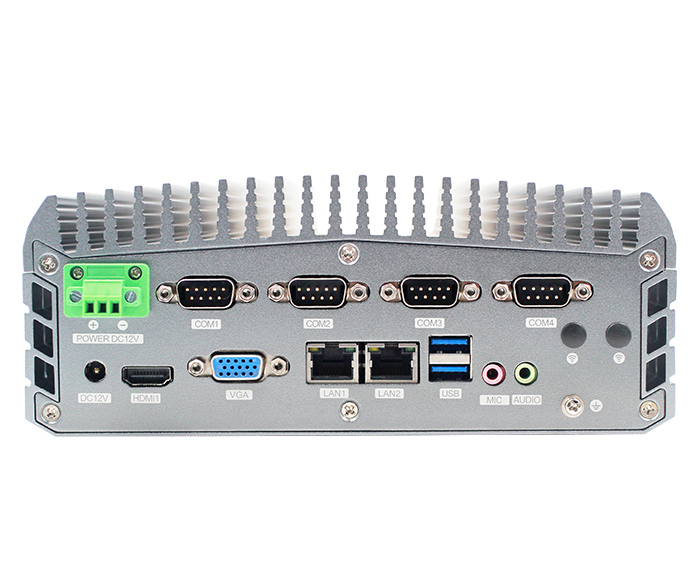

Front panel Interface	2LAN ?1HDMI ?1VGA ?4COM ?1DC ?1MIC-IN ?1LINE-OUT?2USB3.0 ?2WIFI antenna 1Ground connection

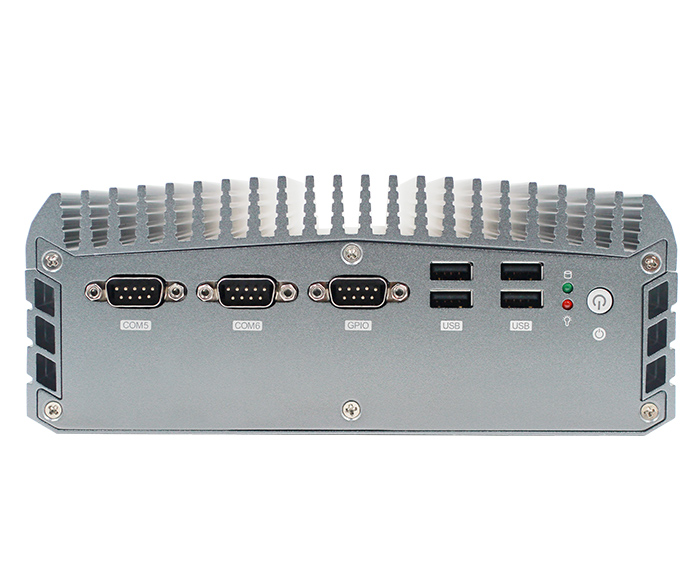

Back panel interface	2COM 1GPIO 4USB2.01 Power switch button 1 * Hard disk indicator 1 * Power indicator
Working temperature	-20℃ ~ +60℃
Operate system	Windows10 or Linux

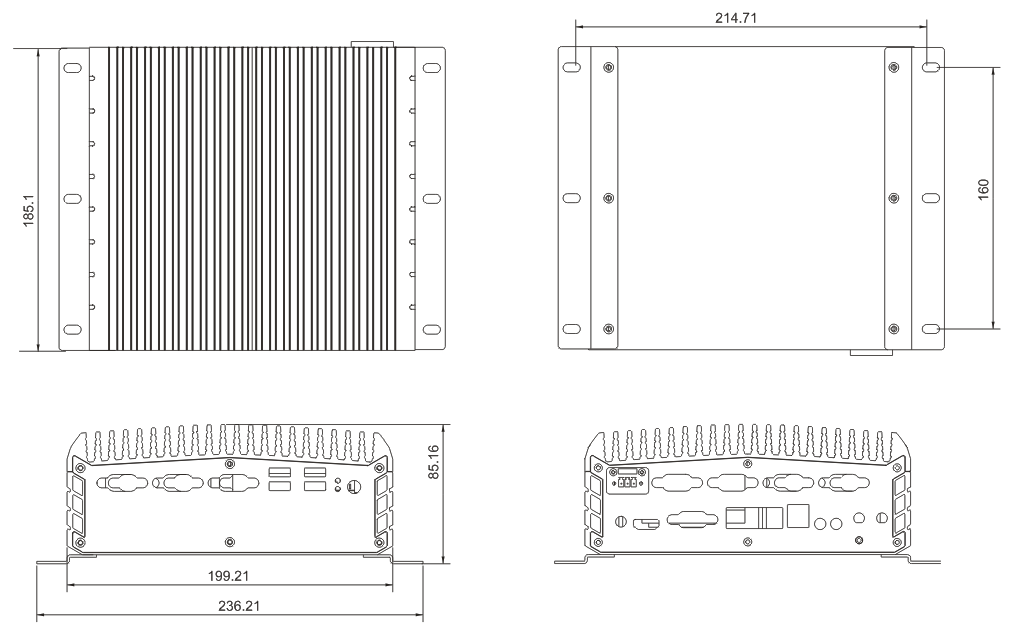

Size

order information

Model

description

CPU?optional

TOP310B-I3

?Intel 8^th?Whiskey Lake-U C

I3-8145U

TOP310B-I5

?Intel 8^th?Whiskey Lake-U C

I5-8265U

TOP310B-I7

?Intel 8^th?Whiskey Lake-U C

I7-8565U

TOP310B-Celeron

?Intel 8^th?Whiskey Lake-U C

4205U

????
