Q-BOX-S1

Model : Q-BOX-S1

Description :
◆ Support Intel Braswell serial processor ；
◆ onboard 2G\\4G memory；
◆ Onboard 16/32/64/128G EMMC（optional）；
◆ 6*RS-232 or 4*RS232，2*RS422/RS485(either one or the other one out of two）
◆ Providing 1*VGA,1*HDMI；
◆ DC12V Power supply；

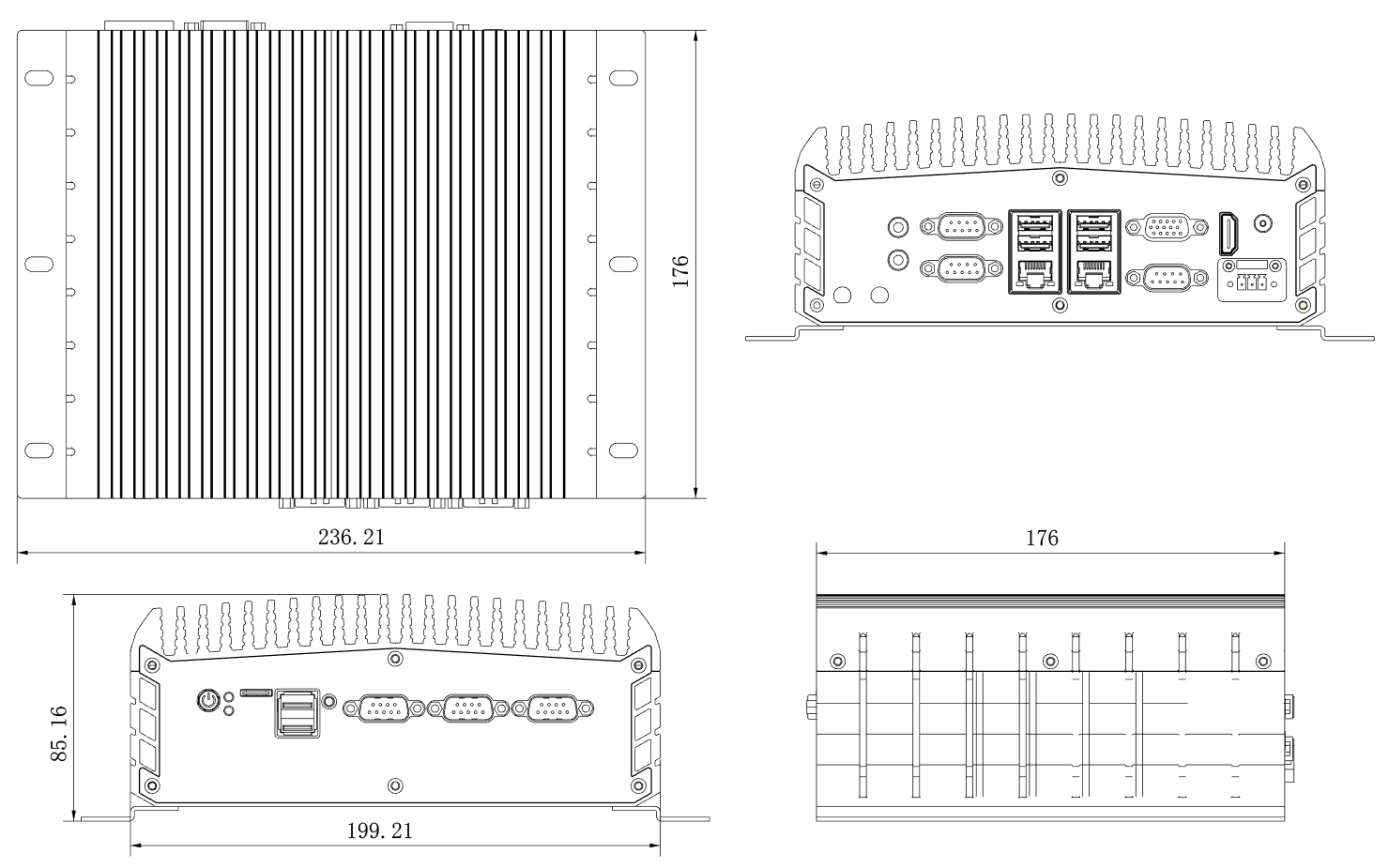

◆ size :236*176*85mm ；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support Intel Braswell serial processor ；

◆ onboard 2G\4G memory；

◆ Onboard 16/32/64/128G EMMC（optional）；

◆ 6*RS-232 or 4*RS232，2*RS422/RS485(either one or the other one out of two）

◆ Providing 1*VGA,1*HDMI；

◆ DC12V Power supply；

◆ size :236*176*85mm ；

Model	Q-BOX-S1
size	23617685mm
Processor	Support Intel Braswell serial CPU
Chipset	Intel Braswell single chip set
System support	Windows7 Windows10 Linux
Ram socket	Onboard 2G\4G?Memory
Lan Port	onboard 2*Intel i1211 AT Lan Port
Audio	Onboard ?HDA ALC662
Storage equipment	1Mini-SATA?1SATA3.0 1*SATA_HDD
Color	sliver

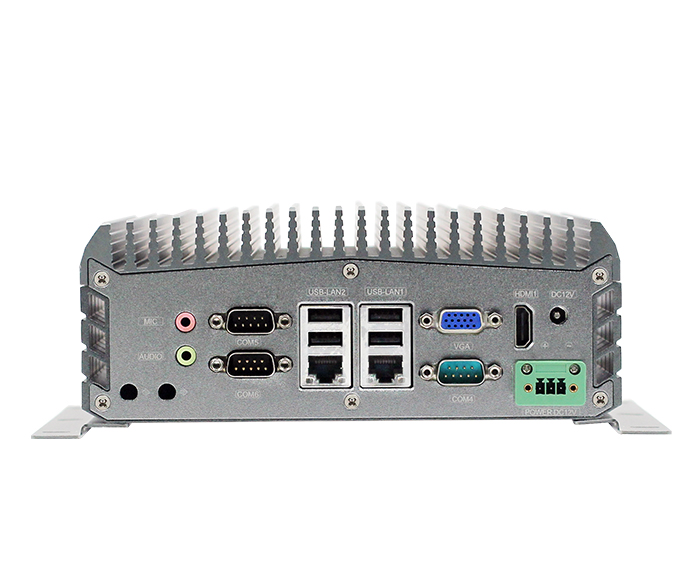

front panel Interface	2LAN ?1HDMI ?1VGA ?3COM(RS232) 4USB2.0??1DC ?1MIC-IN ?1LINE-OUT????2*WIFI?antenna Interface

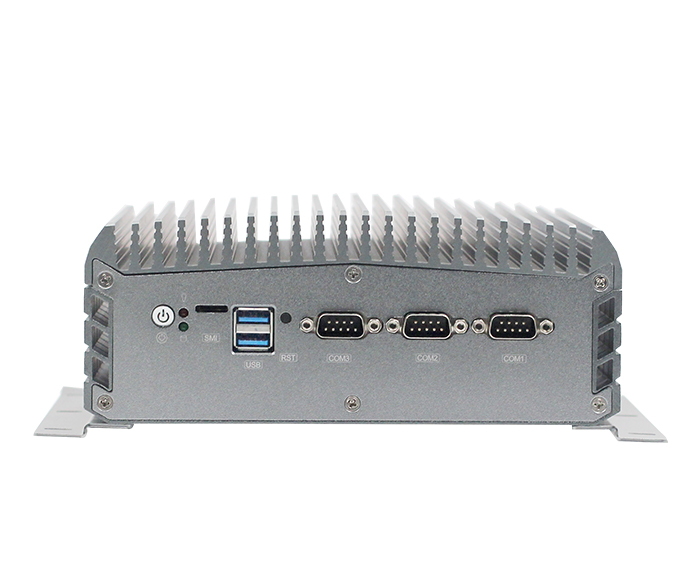

Back panel interface	1* fast switch button with indicator light ?1* power indicator light 1* hard disk indicator 2USB3.0 3COM (1 RS22, 2 RS422/485 or 3 RS232) 1*SIM card slot
