Q-BOX-M(TOP2550)

Model : Q-BOX-M(TOP2550)

Description :
◆IntegratedIntel 4th Mobile Haswell-U single chipset CPU；
◆ Onboard 2GB/4GB DDR3L Memory；
◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）;
◆4*RS-232, 2*RS422/485（optional6*RS232）；
◆ Support power-on automatic startup function, jumper selection；
◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional);

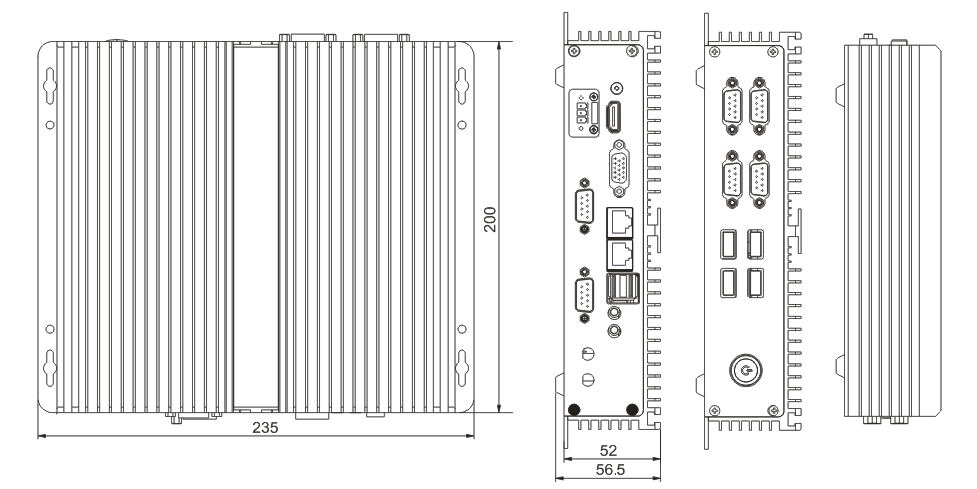

◆ Size:235*200*56.5mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆IntegratedIntel 4^th Mobile Haswell-U single chipset CPU；

◆ Onboard 2GB/4GB DDR3L Memory；

◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）

◆4*RS-232, 2*RS422/485（optional6*RS232）；

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm；

SPECIFICATION

Model No.	Q-BOX-M
Measure	23520056.5mm
Processor	Integrated Intel Intel 4^th?Mobile Haswell-U single chipset ?CPU；
Chip	Haswell-Usingle chipset ?CPU
RAM	Onboard 2GB/4GB DDR3LRAM, Max. Expanded 12Gb
Expansion slot	1 DDR3 SODIMM 204 Socket
Network	Onboard 2*Gigabit Ethernet
Audio	Onboard ?HDA ALC662
Storage	1MINISATA Support SSD; 2SATA 1*SATA_HDD
Chassis Color	Black

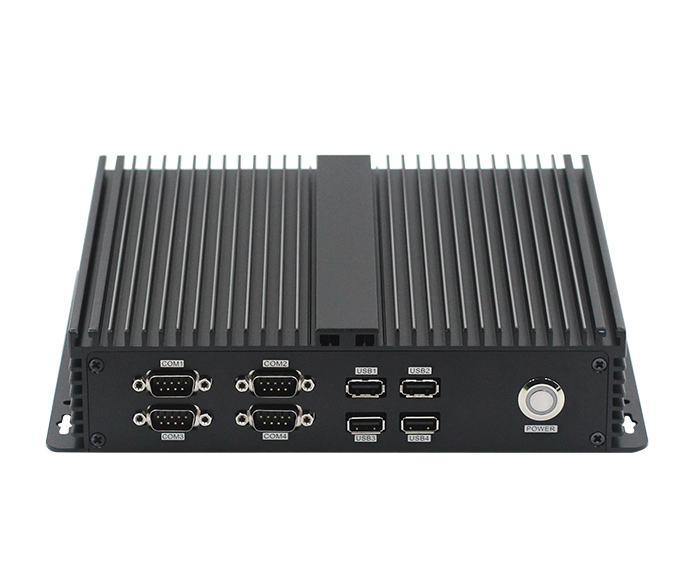

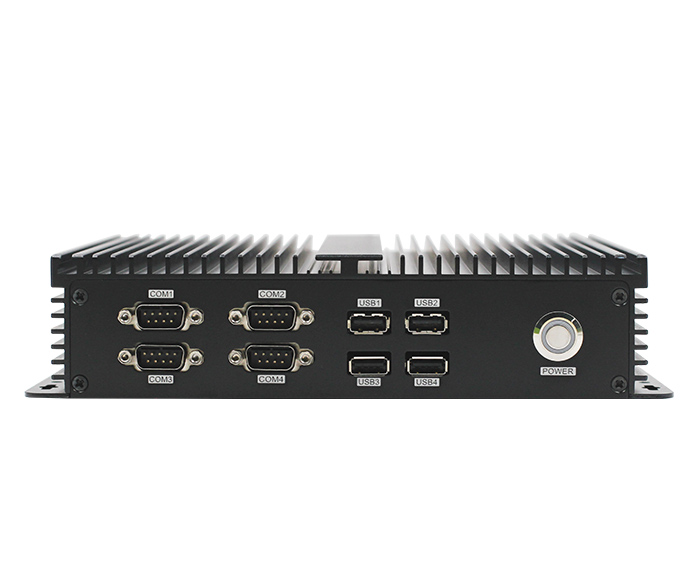

Front panel I/O	4COM（COM1and COM2 RS422/RS485 or RS232 Optional）4USB 1*POW-ON/OFF（switch）indicator?light

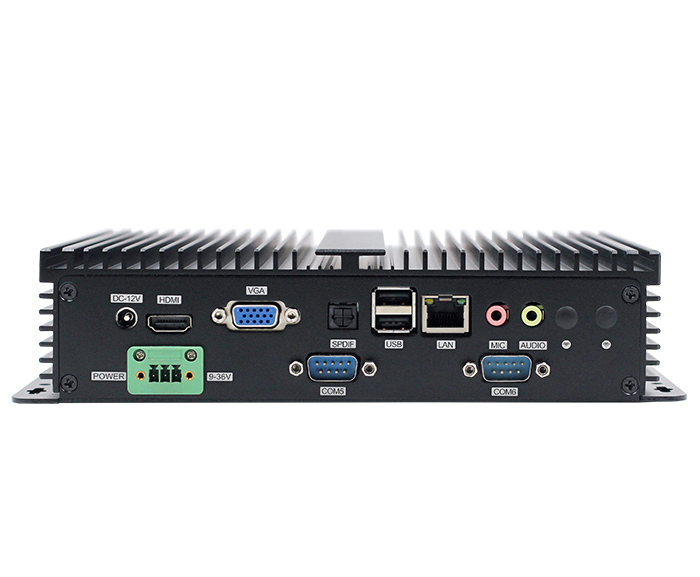

Back panel I/O	1VGA 1HDMI 2USB3.0 ?2LAN 1line out 1mic in 2COM(RS232) 1DC 11Phoenix Terminals 3PIN power interface
Standard Accessories	112V 5Apower adapter 1WIFI antenna （optional））
Package

?Size

Order Information

Model No

SPECIFICATION

Processor

?

TOP2550

Integrated?Intel? AtomD2550/N2600/D2700/N2800 processor

Integrated?Intel? Atom D2550+NM10 chipset

?

D2550 32nm/1.86Ghz/10W

N2600 32nm/1.6Ghz/4W

D2700 32nm/2.13Ghz/10W

N2800 32nm/1.86Ghz/6.5W
